perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 6.6 · Thesis 4 · Orayech 2015

Figure 6.6 · Thesis 4 · Orayech 2015

status thesis-only · visibility public · id plt:thesis-04.6.6

Open in its own tab ↗

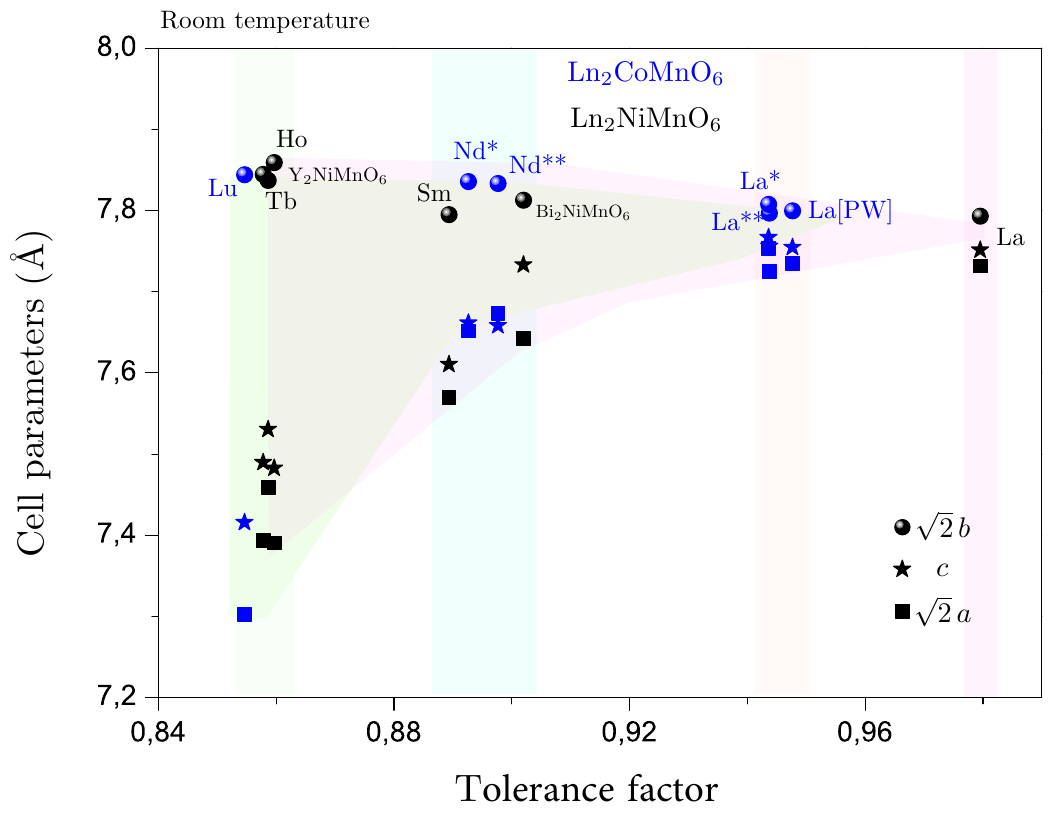

Evolution, at room temperature, of the cell parameters along the analyzed structures in the families: $\mathrm{Ln}_{2} \mathrm{CoMnO}_{6}$ (blue) $\left(\mathrm{Ln}=\mathrm{La}[\mathrm{PW}], \mathrm{La}^{* 115}, \mathrm{La}^{* * 119}, \mathrm{Lu}^{128} \mathrm{Nd}^{* 129}, \mathrm{Nd}^{* * 130}\right)$; and, $\mathrm{Ln}_{2} \mathrm{NiMnO}_{6}$ (black) $\left(\mathrm{Ln}=\mathrm{La}^{\underline{115}}, \mathrm{ Tb}^{\underline{118}}, \mathrm{Sm}^{\underline{118}}, \mathrm{Hd}^{\underline{131}}\right), \mathrm{Y}_{2} \mathrm{NiMnO}_{6}{ }^{\underline{132}}$ and $\mathrm{Bi}_{2} \mathrm{NiMnO}_{6} \stackrel{133}{\text {. As in figure6.3, we are using }}$ the experimental tolerance factor, calculated using the experimentally obtained bond-distances. PW stands for present work.

Evolution, at room temperature, of the cell parameters along the analyzed structures in the families: \mathrm{Ln}_{2} \mathrm{CoMnO}_{6} (blue) \left(\mathrm{Ln}=\mathrm{La}[\mathrm{PW}], \mathrm{La}^{* 115}, \mathrm{La}^{* * 119}, \mathrm{Lu}^{128} \mathrm{Nd}^{* 129}, \mathrm{Nd}^{* * 130}\right); and, \mathrm{Ln}_{2} \mathrm{NiMnO}_{6} (black) \left(\mathrm{Ln}=\mathrm{La}^{\underline{115}}, \mathrm{ Tb}^{\underline{118}}, \mathrm{Sm}^{\underline{118}}, \mathrm{Hd}^{\underline{131}}\right), \mathrm{Y}_{2} \mathrm{NiMnO}_{6}{ }^{\underline{132}} and \mathrm{Bi}_{2} \mathrm{NiMnO}_{6} \stackrel{133}{\text {. As in figure6.3, we are using }} the experimental tolerance factor, calculated using the experimentally obtained bond-distances. PW stands for present work.

Document
Thesis 4 · Orayech 2015
Figure
6.6
Kind
cell-vs-t
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
