Figure 7.10 · Thesis 3 · Iturbe 2012

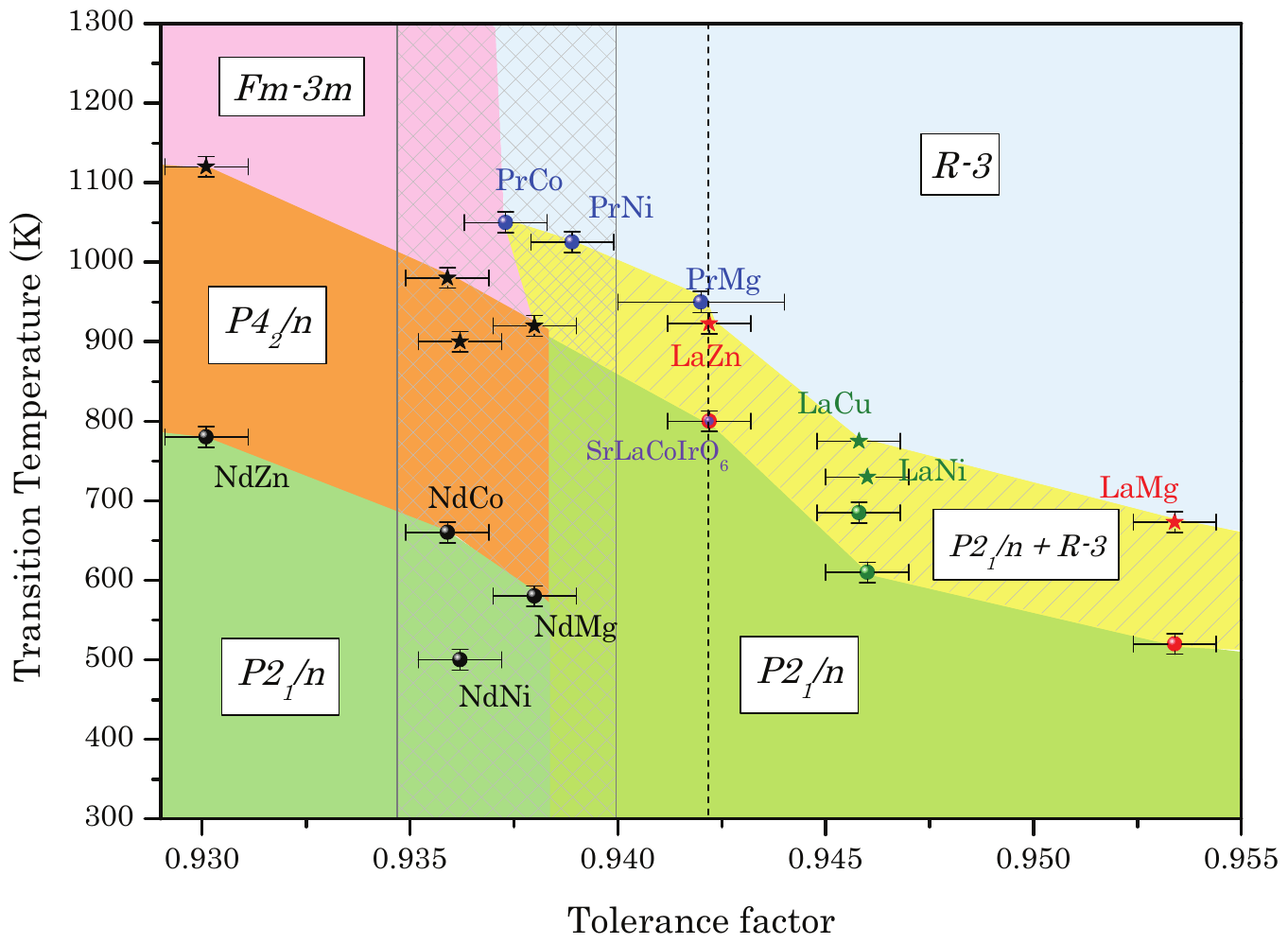

Experimentally calculated tolerance factor and temperature dependence phase diagram of \mathrm{SrLaMRuO}_{6}(\mathrm{M}=\mathrm{Zn}[\mathrm{PW}], \mathrm{Cu}[116], \mathrm{Mg}[\mathrm{PW}], \mathrm{Ni}[116]), \mathrm{SrNdMRuO}_{6}(\mathrm{M}=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni})[120] and \mathrm{SrPrMRuO}_{6}(\mathrm{M}=\mathrm{Co}, \mathrm{Mg}, \mathrm{Ni}) [125]. PW stands for present work. Two green tonality are used in P 2_{1} / n phase to distinguish the different transition sequences. Two-phase region separating P 2_{1} / n from R \overline{3} is shown in striped-yellow area. Grilled area highlights two phase transition overlapped area. Vertical dotted line is indicative of the same theoretical tolerance factor for \mathrm{SrLaZnRuO}_{6} and \mathrm{SrLaCoIrO}_{6} [127].
