Figure 5.12 · Thesis 3 · Iturbe 2012

Figure 5.12 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.5.12

Open in its own tab ↗

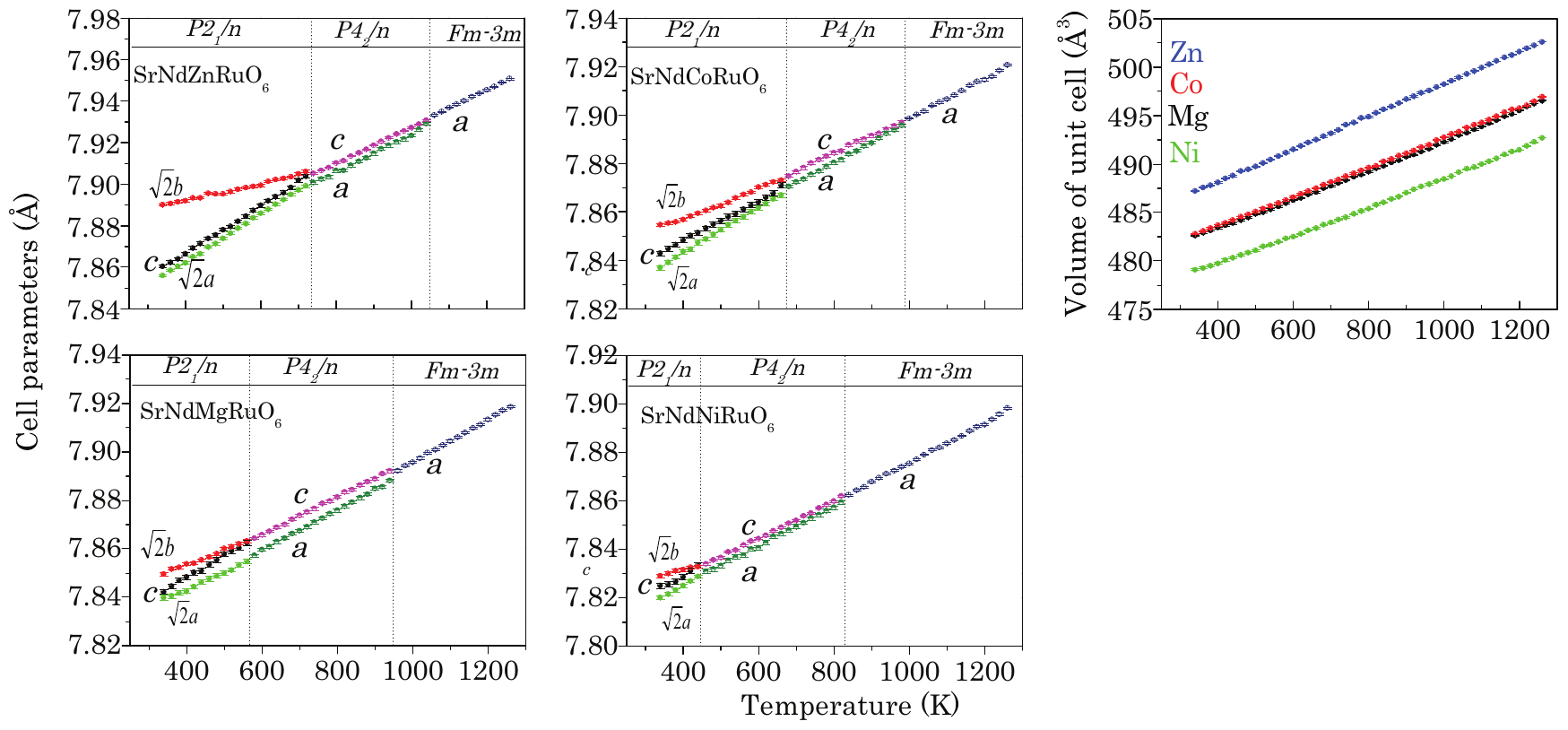

Temperature evolution of the cell parameters and cell-volume of $\mathrm{SrNdMRuO}_{6} (M=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni})$. The monoclinic $a$ and $b$ cell parameters have been scaled to be comparable with the tetragonal and cubic cell parameters. The transition temperatures ( $\mathrm{T}_{1}: P 2_{1} / n P 4_{2} / n; \mathrm{T}_{2}: P 4_{2} / n F m \overline{3} m$) for $\mathrm{SrNd} \mathrm{MRuO}_{6}(\mathrm{M}=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni})$ are the following: $\mathrm{T}_{1}=740,660,560,440 \mathrm{K}$, and $\mathrm{T}_{2}=1060,1000,940$, 820 K, respectively.

Temperature evolution of the cell parameters and cell-volume of \mathrm{SrNdMRuO}_{6} (M=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni}). The monoclinic a and b cell parameters have been scaled to be comparable with the tetragonal and cubic cell parameters. The transition temperatures ( \mathrm{T}_{1}: P 2_{1} / n P 4_{2} / n; \mathrm{T}_{2}: P 4_{2} / n F m \overline{3} m) for \mathrm{SrNd} \mathrm{MRuO}_{6}(\mathrm{M}=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni}) are the following: \mathrm{T}_{1}=740,660,560,440 \mathrm{K}, and \mathrm{T}_{2}=1060,1000,940, 820 K, respectively.

Document
Thesis 3 · Iturbe 2012
Figure
5.12
Kind
cell-vs-t
Rights
own
Reproduce
pending
Materials
SrNdZnRuO6
Transitions
srndznruo6.p21n-p42n.iturbe2012, srndznruo6.p42n-fm3m.iturbe2012
