perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 9.7 · Thesis 4 · Orayech 2015

Figure 9.7 · Thesis 4 · Orayech 2015

status thesis-only · visibility public · id plt:thesis-04.9.7

Open in its own tab ↗

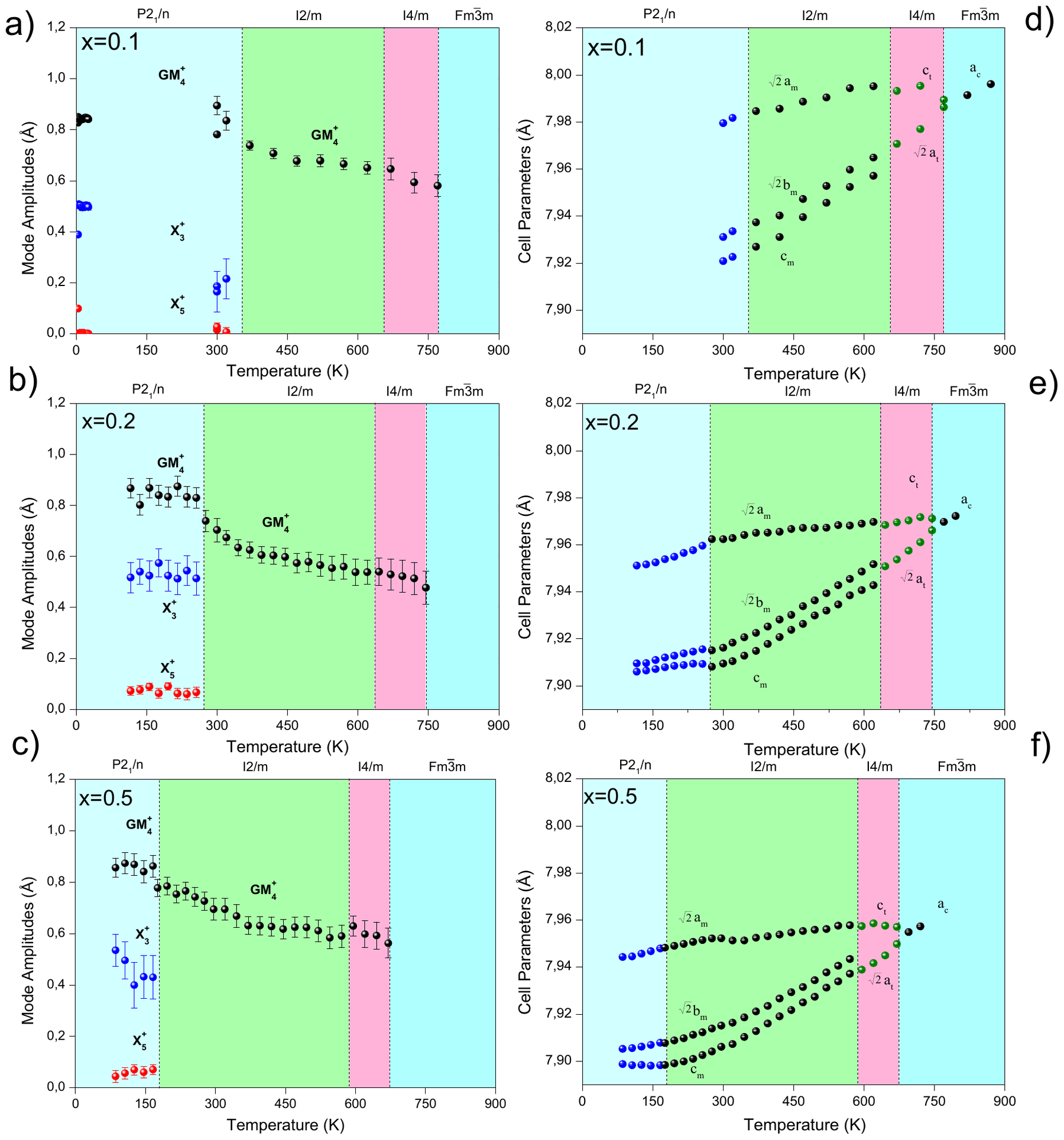

Temperature dependence of (a-c) the amplitudes of the modes related to the $P 2_{1} / n, I 2 / m$ and $I 4 / m$ symmetries and (d-f) their corresponding cell parameters, as obtained from NPD and XRD data refinements, for the $\mathrm{Sr}_{2} \mathrm{Co}_{1-x} \mathrm{Mg}_{x} \mathrm{TeO}_{6}$ compounds with ( $x=0.0,0.1,0.2,0.5$)

Temperature dependence of (a-c) the amplitudes of the modes related to the P 2_{1} / n, I 2 / m and I 4 / m symmetries and (d-f) their corresponding cell parameters, as obtained from NPD and XRD data refinements, for the \mathrm{Sr}_{2} \mathrm{Co}_{1-x} \mathrm{Mg}_{x} \mathrm{TeO}_{6} compounds with ( x=0.0,0.1,0.2,0.5)

Document
Thesis 4 · Orayech 2015
Figure
9.7
Kind
amplitude-vs-t
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
