Figure 9.1 · Thesis 4 · Orayech 2015

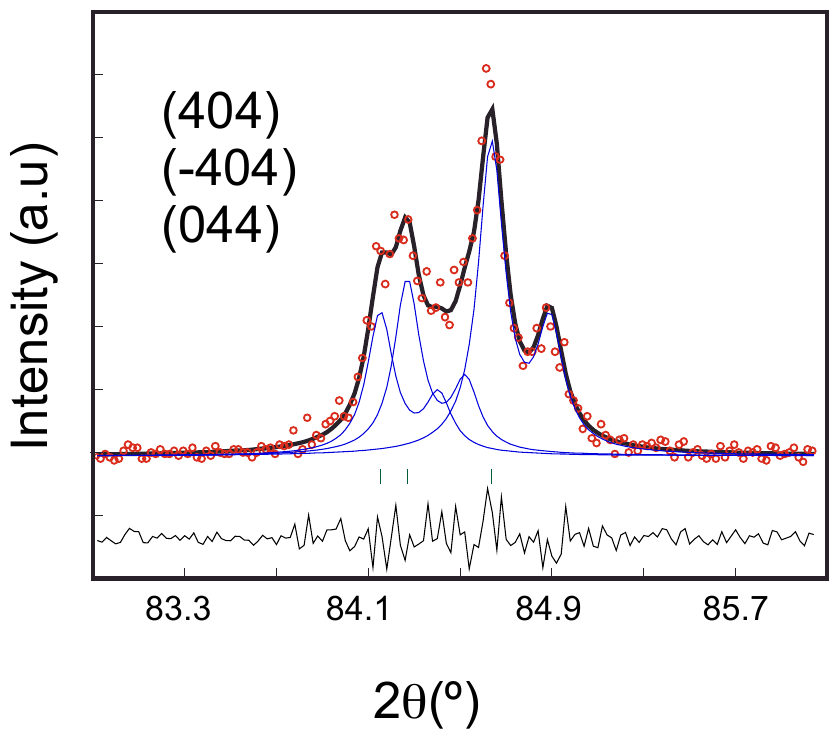

Splitting of the singlet cubic reflection (444) { }_{\mathrm{c}} into a triplet: (404), (-404) and (044) reflections. The plot shows a fit with three reflections.
