Figure 6.2 · Thesis 4 · Orayech 2015

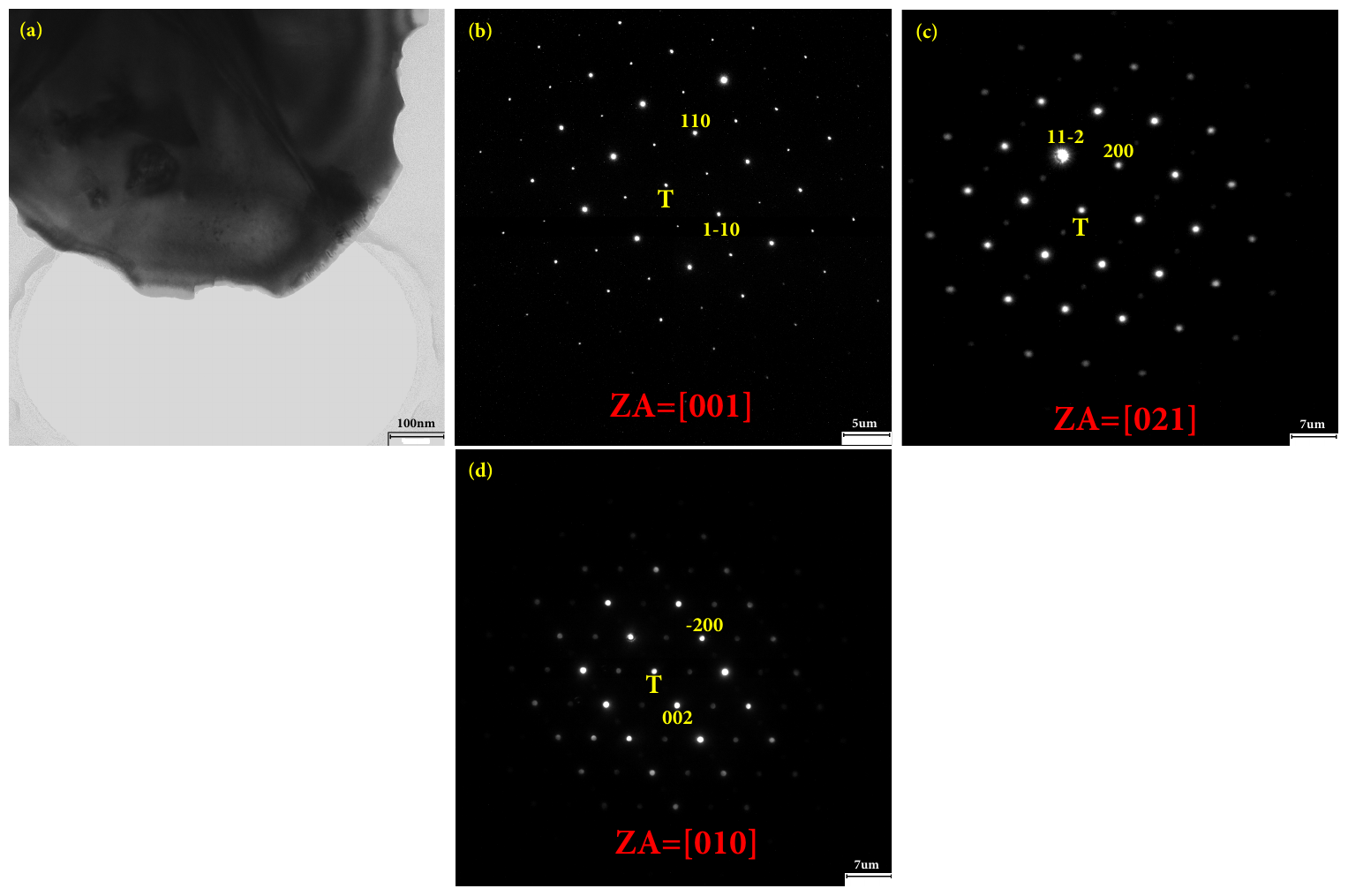

(a) Bright field image of electron transparent area of one particle. (b) Selected area electron diffraction pattern acquired along the [001] zone axis. (c) and (d) Electron micro-diffraction pattern acquired along the [021] and [010] zone axis, respectively. The reflections indicated in the patterns were identified by simulations done with the JEMS software, using the neutron data.
