perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 10.2 · Thesis 4 · Orayech 2015

Figure 10.2 · Thesis 4 · Orayech 2015

status thesis-only · visibility public · id plt:thesis-04.10.2

Open in its own tab ↗

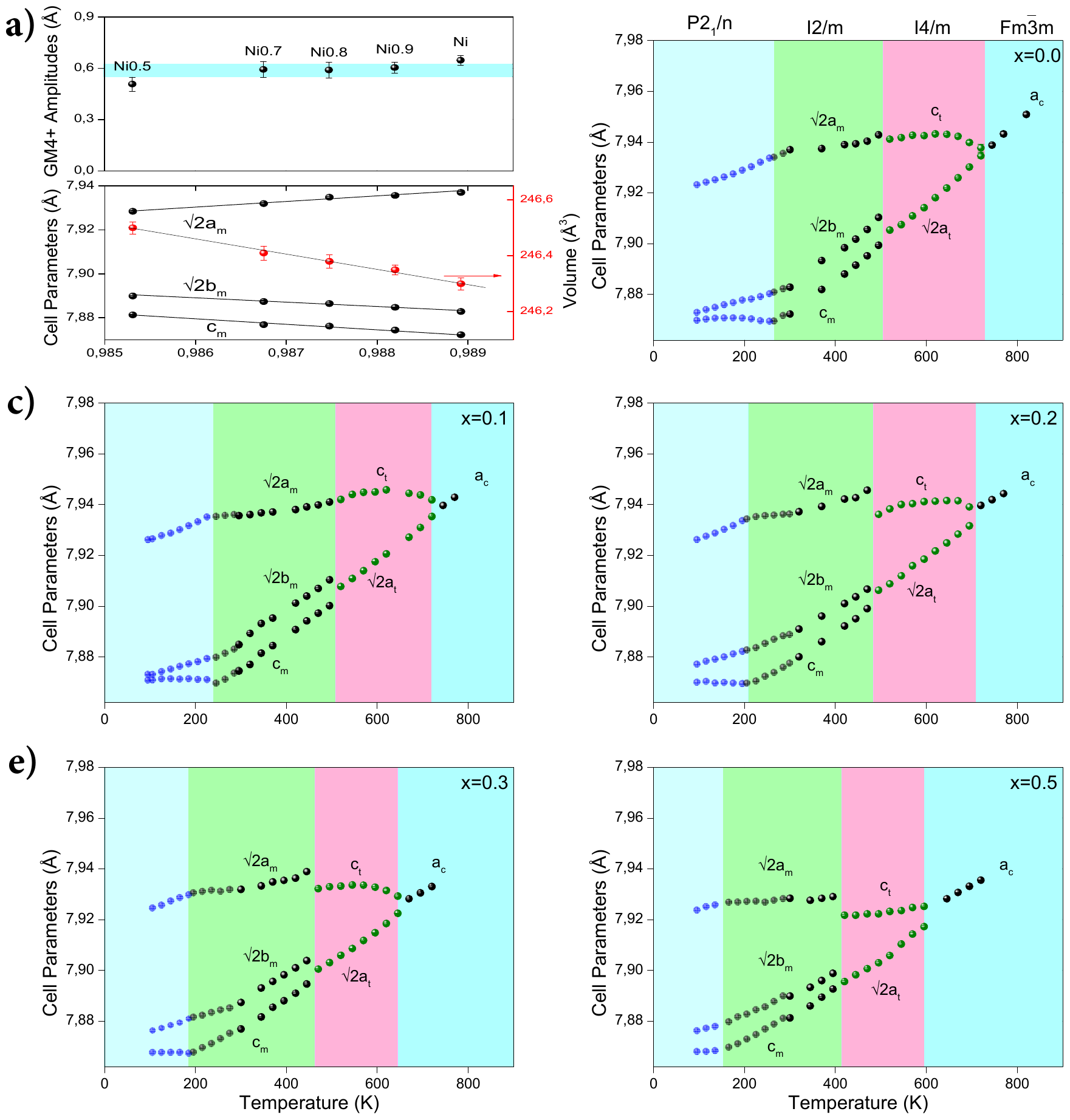

(a): Variation, as function of the tolerance factor, of the distortion-amplitude transforming according to the $\mathrm{GM}_{4}^{+}$irrep and the cell parameters (black) and the unit-cell volume (blue) at room temperature. (b-e): Thermal evolution of the cell parameters refined in the $P 2_{1} / n, I 2 / m$ and $I 4 / m$ space groups for the $\mathrm{Sr}_{2} \mathrm{Ni}_{1-x} \mathrm{Mg}_{x} \mathrm{TeO}_{6}$ series ( $\mathrm{x}=0.0,0.1$, and 0.2)

(a): Variation, as function of the tolerance factor, of the distortion-amplitude transforming according to the \mathrm{GM}_{4}^{+}irrep and the cell parameters (black) and the unit-cell volume (blue) at room temperature. (b-e): Thermal evolution of the cell parameters refined in the P 2_{1} / n, I 2 / m and I 4 / m space groups for the \mathrm{Sr}_{2} \mathrm{Ni}_{1-x} \mathrm{Mg}_{x} \mathrm{TeO}_{6} series ( \mathrm{x}=0.0,0.1, and 0.2)

Document
Thesis 4 · Orayech 2015
Figure
10.2
Kind
amplitude-vs-t
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
