Figure 9.8 · Thesis 3 · Iturbe 2012

Figure 9.8 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.9.8

Open in its own tab ↗

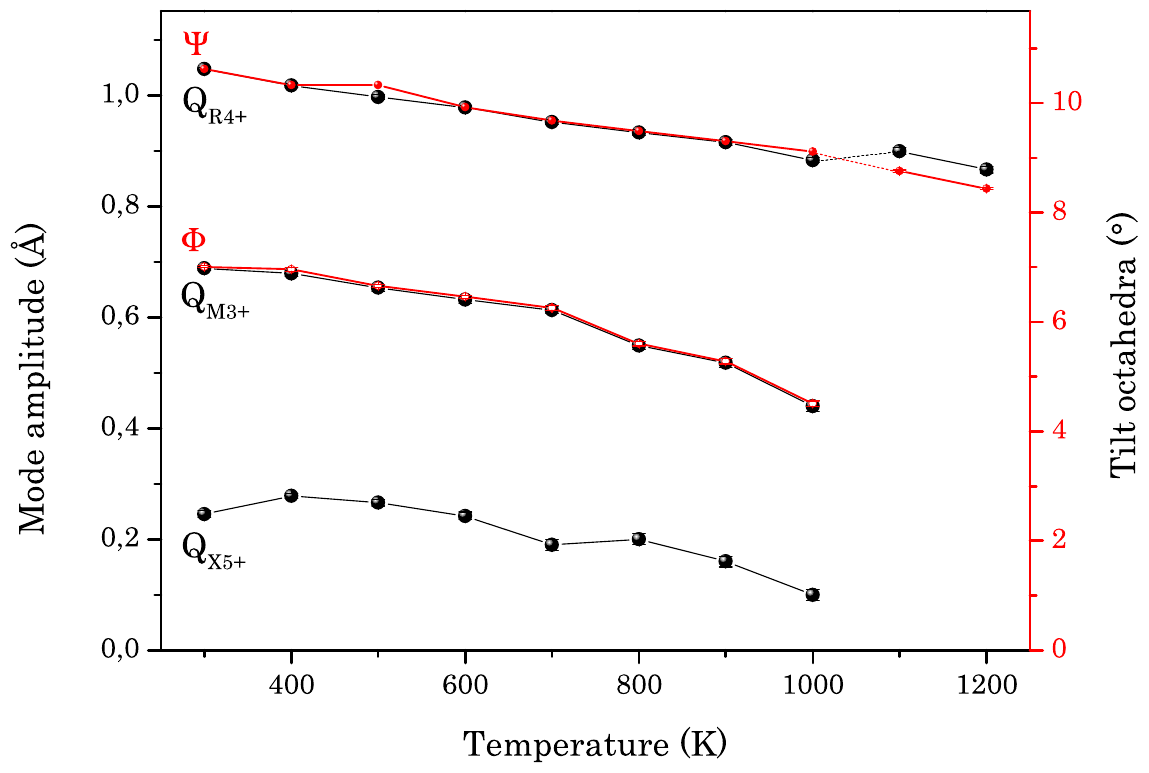

Temperature dependence of the amplitudes of the irreps conforming the $P b n m$ and $R \overline{3} c$ structure of $\mathrm{SrPrFeRuO}_{6}$, and $\Psi$ and $\Phi$ tilt angles, as obtained from the NPD data refinement. The amplitudes of the irreps in the high symmetry phase have been scaled (multiplied by $3 / 2$) to see the evolution, since the program AMPLIMODES uses mode normalization within the corresponding primitive unit cell.

Temperature dependence of the amplitudes of the irreps conforming the P b n m and R \overline{3} c structure of \mathrm{SrPrFeRuO}_{6}, and \Psi and \Phi tilt angles, as obtained from the NPD data refinement. The amplitudes of the irreps in the high symmetry phase have been scaled (multiplied by 3 / 2) to see the evolution, since the program AMPLIMODES uses mode normalization within the corresponding primitive unit cell.

Document
Thesis 3 · Iturbe 2012
Figure
9.8
Kind
amplitude-vs-t
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
