Figure 9.6 · Thesis 3 · Iturbe 2012

Figure 9.6 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.9.6

Open in its own tab ↗

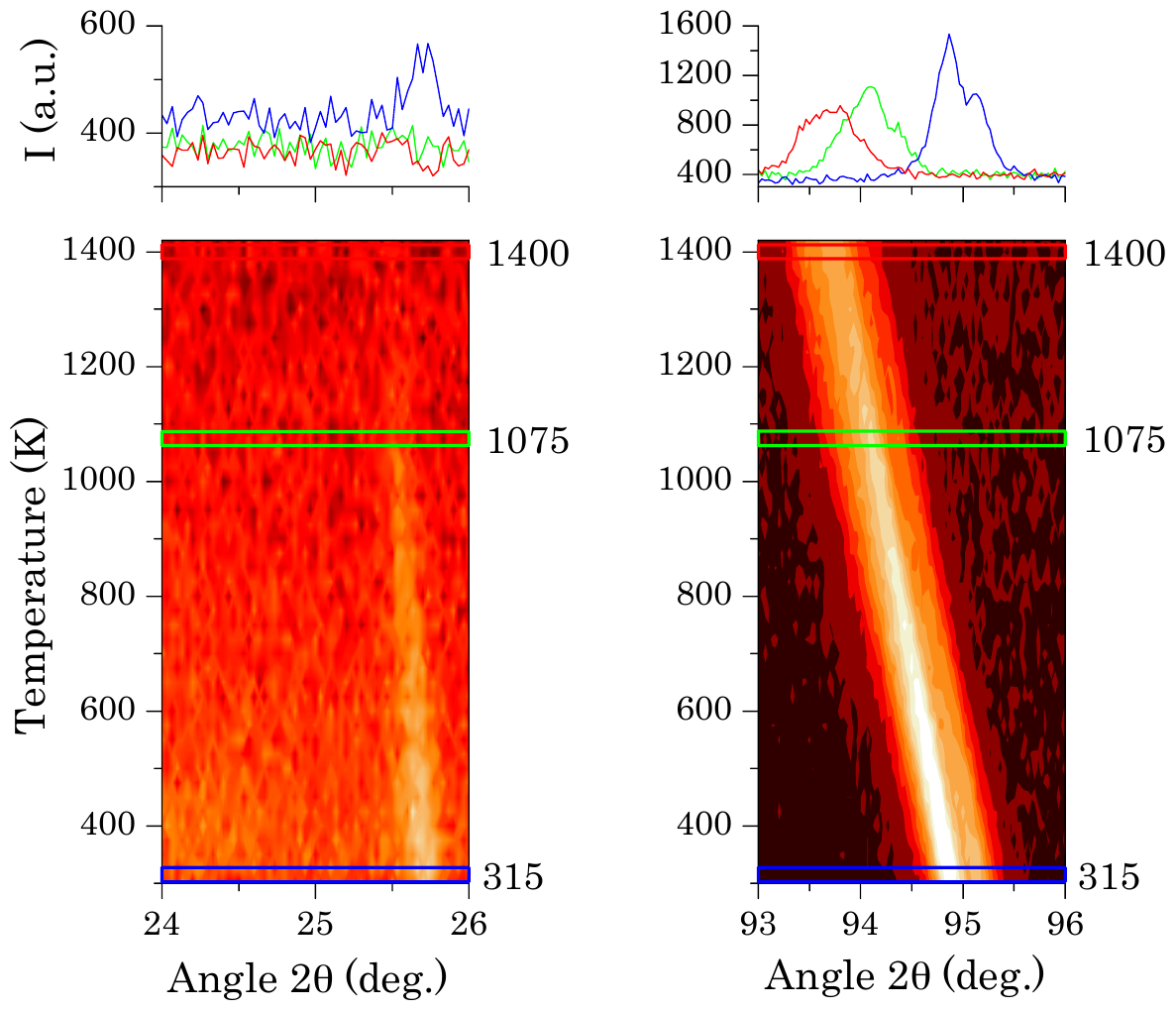

Thermal evolution of the (111) primitive peak and (321) cubic reflections of $\mathrm{SrPrFeRuO}_{6}$ obtained from XRPD experiment. The scattered intensity is represented with yellow-red scale, lightyellow being high intensity and dark-red lowest intensity. At 1075 K the intensity of the peaks related to the primitive cell disappear, transforming into a trigonal cell.

Thermal evolution of the (111) primitive peak and (321) cubic reflections of \mathrm{SrPrFeRuO}_{6} obtained from XRPD experiment. The scattered intensity is represented with yellow-red scale, lightyellow being high intensity and dark-red lowest intensity. At 1075 K the intensity of the peaks related to the primitive cell disappear, transforming into a trigonal cell.
