Figure 9.12 · Thesis 3 · Iturbe 2012

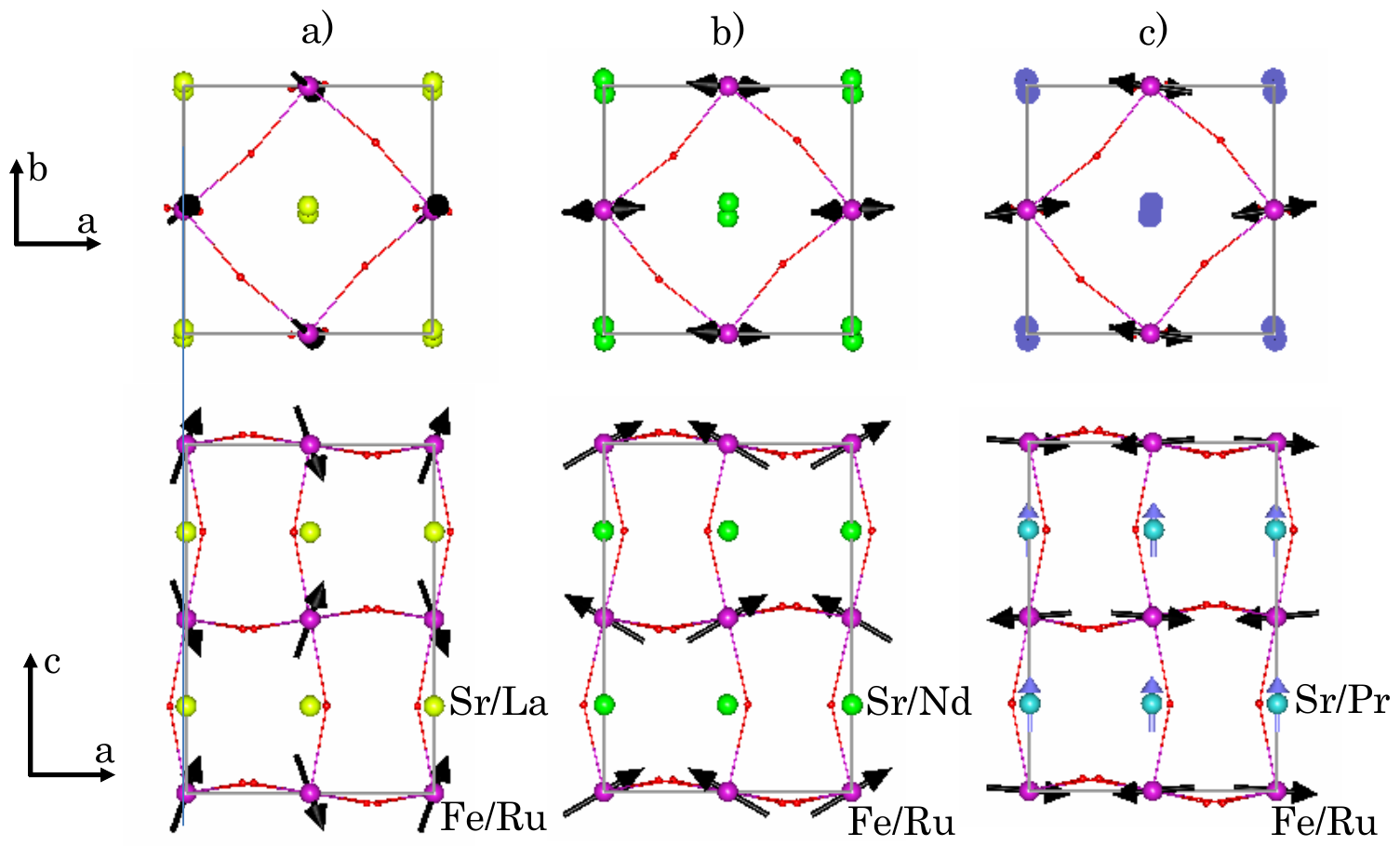

Magnetic structure models, a) \mathrm{SrLaFeRuO}_{6}, 3 \Gamma_{5} solution; b) \mathrm{SrNdFeRuO}_{6}, 3 \Gamma_{3} solution; and c) \mathrm{SrPrFeRuO}_{6}, 3 \Gamma_{3} \oplus 1 \Gamma_{3} solution: \mathrm{Sr} / \mathrm{La}, yellow balls; \mathrm{Sr} / \mathrm{Nd}, green balls; \mathrm{Sr} / \mathrm{Pr}, blue balls, blue arrows; \mathrm{Fe} / \mathrm{Ru}, purple balls, black arrows; and O, red balls.
