Figure 8.4 · Thesis 3 · Iturbe 2012

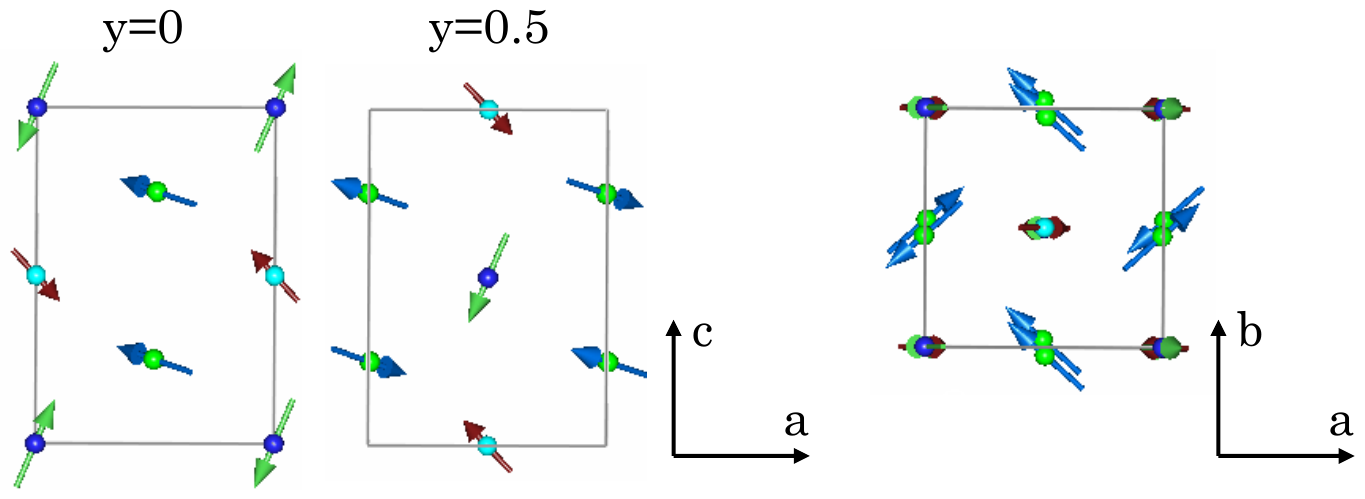

Possible magnetic model of the final refined \left(3 \Gamma 1_{2 a} \oplus 3 \Gamma 2_{2 b} \oplus 3 \Gamma 1_{4 e}\right) magnetic structure for \mathrm{SrPrCoRuO}_{6} at 4 \mathrm{K}. \mu_{\mathrm{y}(\mathrm{Co}, \mathrm{Ru})}=0 was set in order to guarantee the convergence of the model ( \mu_{\text {TOT,Pr }}=1.201 \mu_{\mathrm{B}}, \mu_{\mathrm{TOT}, \mathrm{Co}}=0.326 \mu_{\mathrm{B}}, \mu_{\mathrm{TOT}, \mathrm{Ru}}=2.810 \mu_{\mathrm{B}}). Sr / \operatorname{Ln} green circles, blue vectors; Co, light blue circles, brown vectors; and Ru dark blue circles, green vectors. The atoms are shown in the nuclear cell; magnetic propagation vector (1/2,0,1/2).
