Figure 7.6 · Thesis 3 · Iturbe 2012

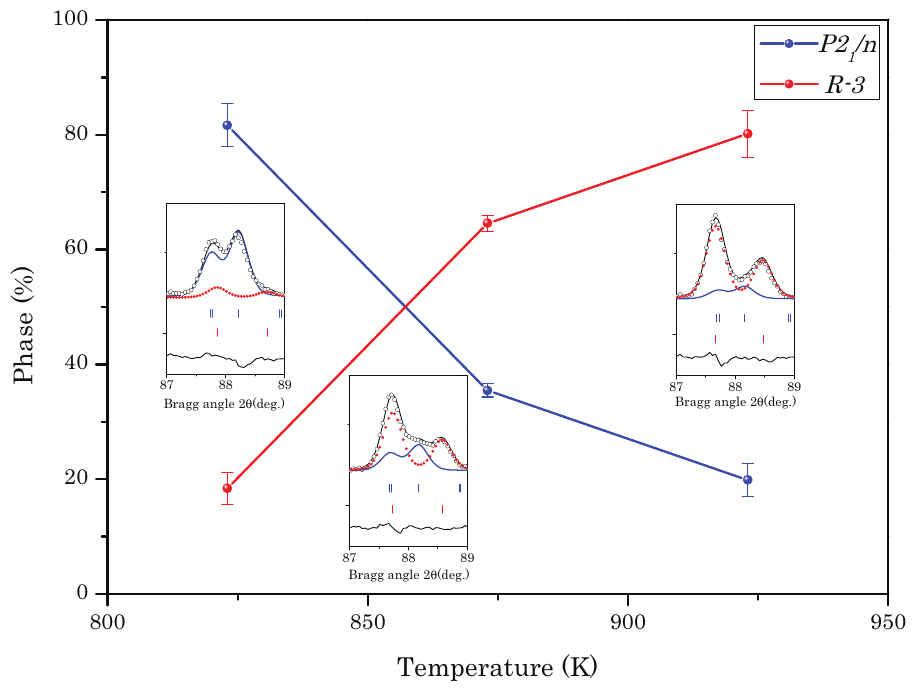

Temperature evolution of the concentration of the P 2_{1} / n (blue) and R \overline{3} (red) phases in the co-existence range for \mathrm{SrLaZnRuO}_{6}. Inset show NPD data Rietveld refinement in combination of two symmetries: blue continued line corresponds to P 2_{1} / n phase and red dotted line to R \overline{3} phase.
