Figure 6.8 · Thesis 3 · Iturbe 2012

Figure 6.8 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.6.8

Open in its own tab ↗

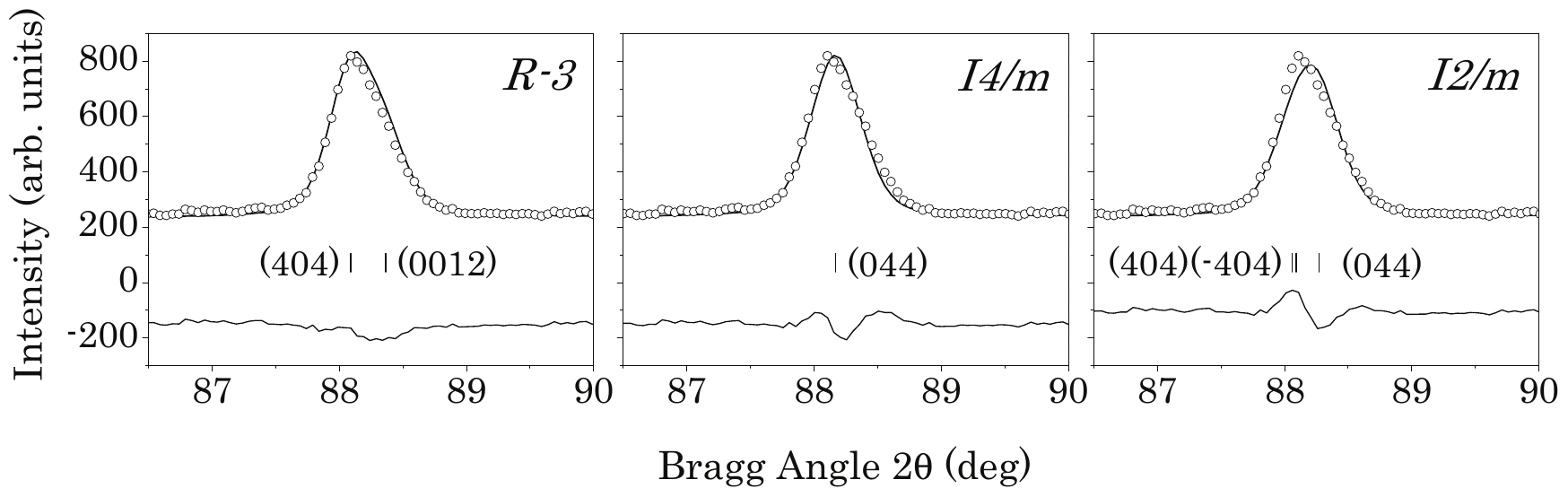

Results of the NPD (D2B $\lambda=1.594 \AA$) data refinement, for $\mathrm{SrPrMgRuO}_{6}$ at 1123 K, using three different models with the $R \overline{3}, I 4 / m$ and $I 2 / m$ space group. The bars indicate the Bragg reflections. We are showing only the $87.5-90^{\circ} 2 \theta$ interval.

Results of the NPD (D2B \lambda=1.594 \AA) data refinement, for \mathrm{SrPrMgRuO}_{6} at 1123 K, using three different models with the R \overline{3}, I 4 / m and I 2 / m space group. The bars indicate the Bragg reflections. We are showing only the 87.5-90^{\circ} 2 \theta interval.

Document
Thesis 3 · Iturbe 2012
Figure
6.8
Kind
pattern
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
