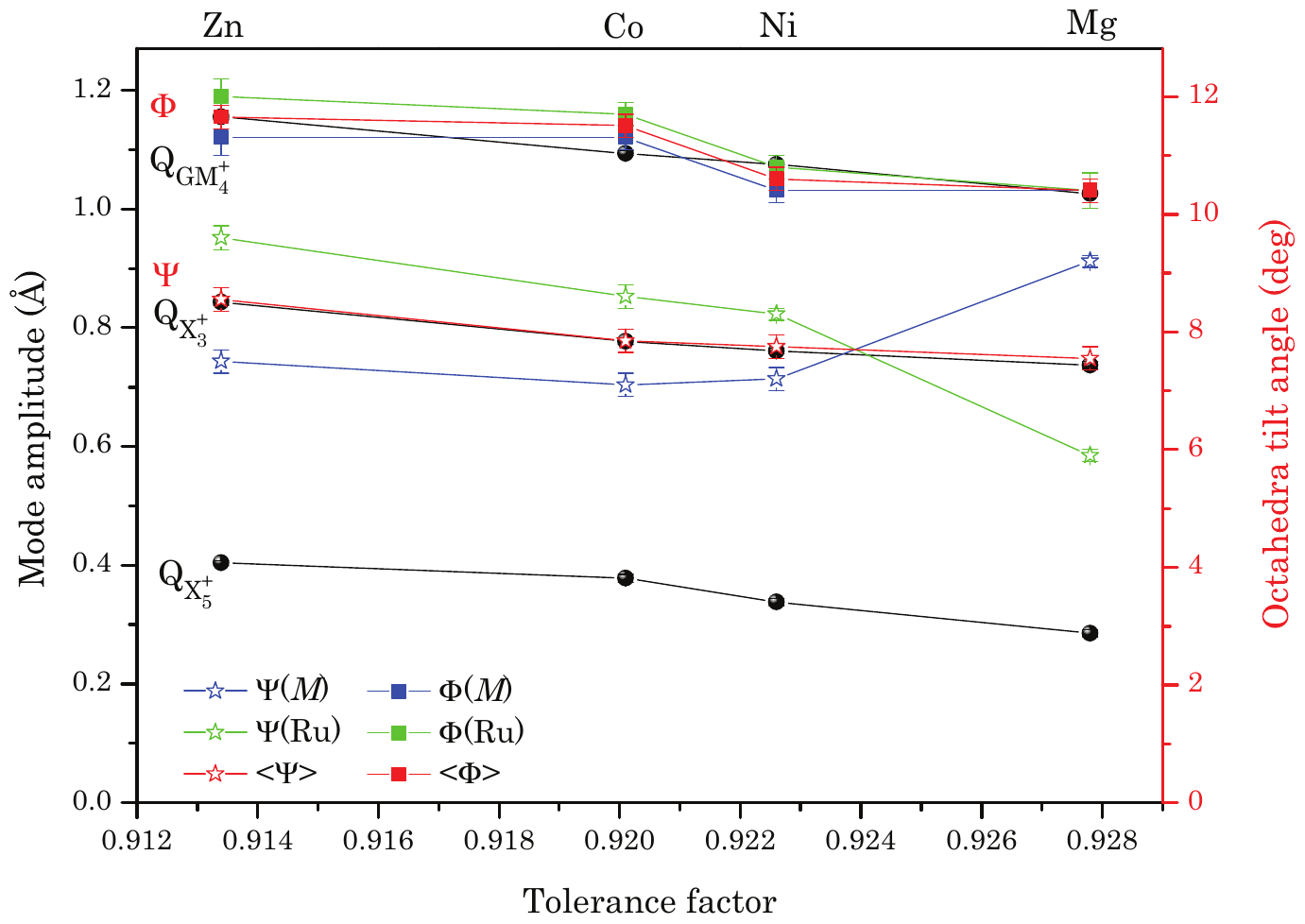

Amplitudes of $\mathrm{GM}_{4}^{+}, \mathrm{X}_{3}^{+}$and $\mathrm{X}_{5}^{+}$irreps (black balls) conforming the RT phase of $\mathrm{SrPr} \mathrm{MRuO}_{6} (\mathrm{M}=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni})$ compounds, and $\Psi($ star $)$ and $\Phi($ square $)$ tilt-angles, as function of the observed tolerance factor. $M \mathrm{O}_{6}, \mathrm{RuO}_{6}$ and average tilt-angles are indicated in blue, green and red color, respectively.

Amplitudes of \mathrm{GM}_{4}^{+}, \mathrm{X}_{3}^{+}and \mathrm{X}_{5}^{+}irreps (black balls) conforming the RT phase of \mathrm{SrPr} \mathrm{MRuO}_{6} (\mathrm{M}=\mathrm{Zn}, \mathrm{Co}, \mathrm{Mg}, \mathrm{Ni}) compounds, and \Psi( star ) and \Phi( square ) tilt-angles, as function of the observed tolerance factor. M \mathrm{O}_{6}, \mathrm{RuO}_{6} and average tilt-angles are indicated in blue, green and red color, respectively.
