perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 6.1 · Thesis 3 · Iturbe 2012

Figure 6.1 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.6.1

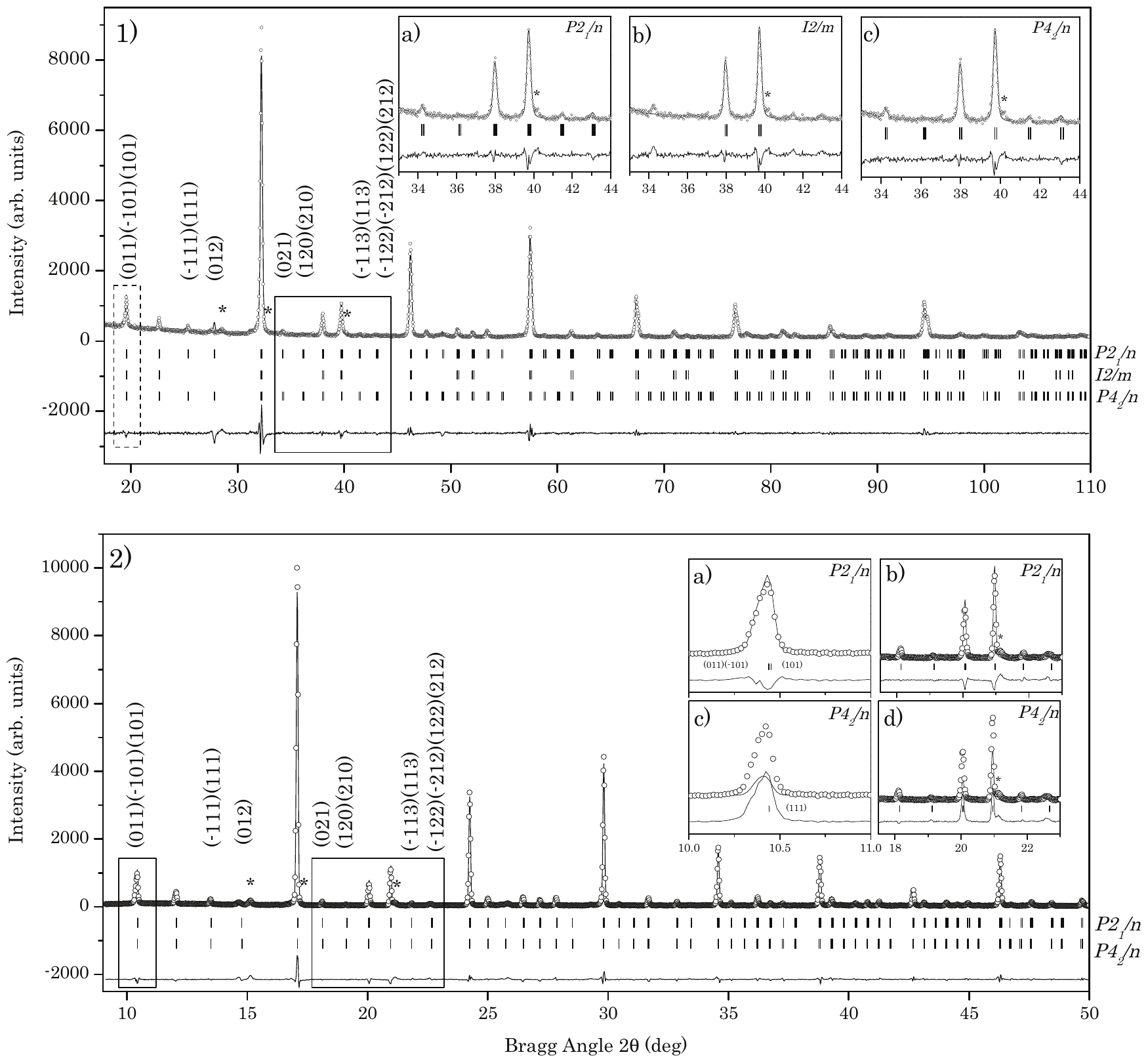

(1)Observed (symbols), calculated (line) and difference (bottom line) XRPD ( \lambda=1.5406 \AA) profile for \mathrm{SrPrMgRuO}_{6} at room temperature. The bars in the lower part of the graphic represent the Bragg-reflections’ positions for three different models: first row, P 2_{1} / n; second row, I 2 / m and third row, P 4_{2} / n. The rectangular section is enlarged in the inset, showing in detail the presence of supercell reflections. The arrows in panel b) indicate the absence of those reflections in the I 2 / m space group model. (2) Observed (symbols), calculated (line) and difference (bottom line) SXRPD ( \lambda=0.8256 \AA) profile for \mathrm{SrPrMgRuO}_{6} at room temperature using a structural model with the P 2_{1} / n space group. The bars indicate the Bragg-reflections’ positions for P 2_{1} / n and P 4_{2} / n models. The inset shows the monoclinic splitting, the tetragonal symmetry does not take into account the observed splitting, ((a) and (c) panels). * indicates very small quantity of an unidentified impurity.

(1)Observed (symbols), calculated (line) and difference (bottom line) XRPD ( \lambda=1.5406 \AA) profile for \mathrm{SrPrMgRuO}_{6} at room temperature. The bars in the lower part of the graphic represent the Bragg-reflections’ positions for three different models: first row, P 2_{1} / n; second row, I 2 / m and third row, P 4_{2} / n. The rectangular section is enlarged in the inset, showing in detail the presence of supercell reflections. The arrows in panel b) indicate the absence of those reflections in the I 2 / m space group model. (2) Observed (symbols), calculated (line) and difference (bottom line) SXRPD ( \lambda=0.8256 \AA) profile for \mathrm{SrPrMgRuO}_{6} at room temperature using a structural model with the P 2_{1} / n space group. The bars indicate the Bragg-reflections’ positions for P 2_{1} / n and P 4_{2} / n models. The inset shows the monoclinic splitting, the tetragonal symmetry does not take into account the observed splitting, ((a) and (c) panels). * indicates very small quantity of an unidentified impurity.

Document
Thesis 3 · Iturbe 2012
Figure
6.1
Kind
rietveld-plot
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1
