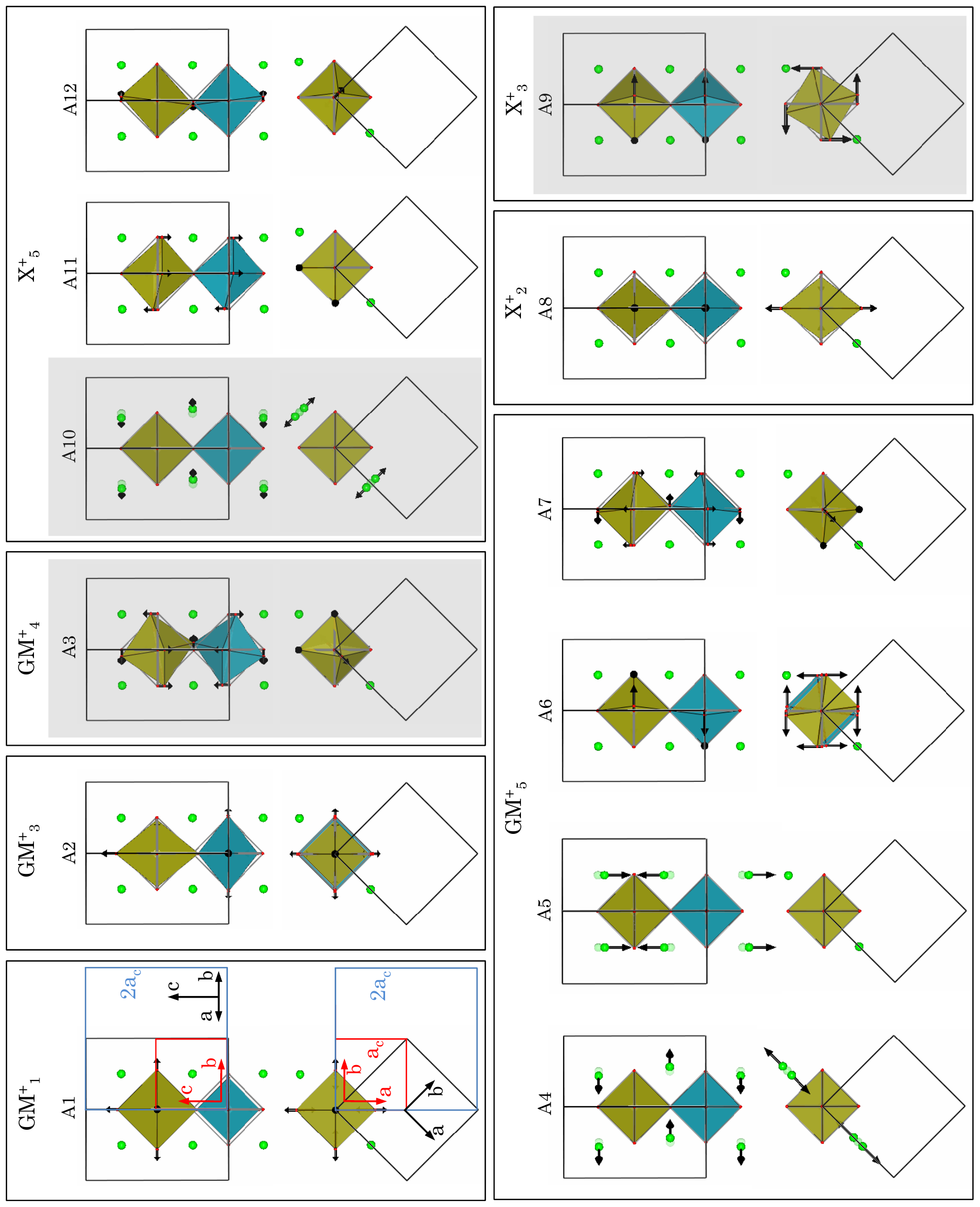

Geometrical representations of the distortion modes of the symmetry breaking from the cubic prototype phase into the monoclinic P 2_{1} / n phase: \mathrm{GM}_{3}^{+}(1), \mathrm{GM}_{3}^{+}(1), \mathrm{GM}_{4}^{+}(1), \mathrm{GM}_{5}^{+}(4), \mathrm{X}_{2}^{+}(1), \mathrm{X}_{3}^{+}(1) and \mathrm{X}_{5}^{+}(3). The numbers in parenthesis indicate the number of modes transforming according to the corresponding irrep. The principal modes are highlighted in grey.

Geometrical representations of the distortion modes of the symmetry breaking from the cubic prototype phase into the monoclinic P 2_{1} / n phase: \mathrm{GM}_{3}^{+}(1), \mathrm{GM}_{3}^{+}(1), \mathrm{GM}_{4}^{+}(1), \mathrm{GM}_{5}^{+}(4), \mathrm{X}_{2}^{+}(1), \mathrm{X}_{3}^{+}(1) and \mathrm{X}_{5}^{+}(3). The numbers in parenthesis indicate the number of modes transforming according to the corresponding irrep. The principal modes are highlighted in grey.
