perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 5.3 · Thesis 3 · Iturbe 2012

Figure 5.3 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.5.3

Open in its own tab ↗

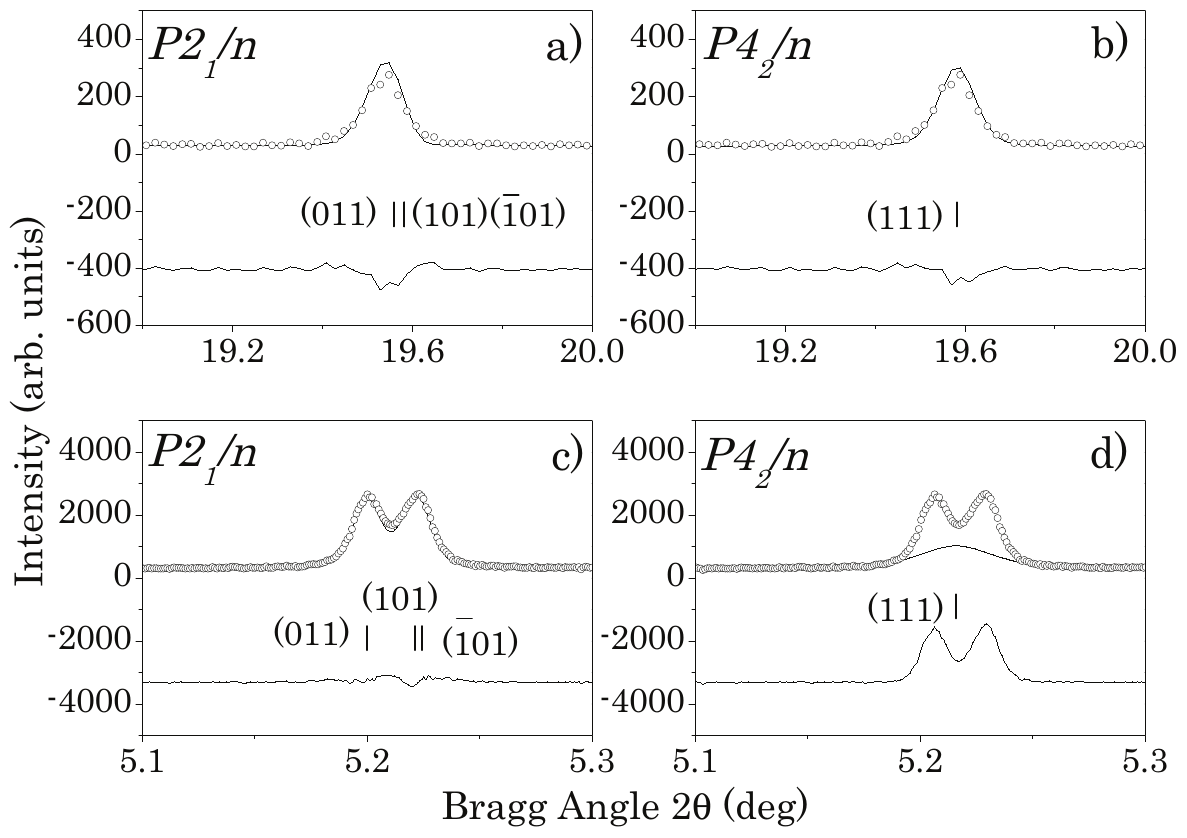

Results of the XRPD a) and b) and SXRPD c) and d) data refinements, in the $19-20^{\circ}$ and 5.1$5.3^{\circ} 2 \theta$ interval respectively, in $\mathrm{SrNdCoRuO}{ }_{6}$, using two different models with $P 2_{1} / n$ and $P 4_{2} / n$ space groups. The tetragonal space group has only one reflection in this $2 \theta$ interval, and is unable to take into account the splitting observed in SXRPD; on contrary, the monoclinic space group has three reflections and takes perfectly into account the splitting.

Results of the XRPD a) and b) and SXRPD c) and d) data refinements, in the 19-20^{\circ} and 5.15.3^{\circ} 2 \theta interval respectively, in \mathrm{SrNdCoRuO}{ }_{6}, using two different models with P 2_{1} / n and P 4_{2} / n space groups. The tetragonal space group has only one reflection in this 2 \theta interval, and is unable to take into account the splitting observed in SXRPD; on contrary, the monoclinic space group has three reflections and takes perfectly into account the splitting.

Document
Thesis 3 · Iturbe 2012
Figure
5.3
Kind
pattern
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1
