perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 5.2 · Thesis 3 · Iturbe 2012

Figure 5.2 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.5.2

Open in its own tab ↗

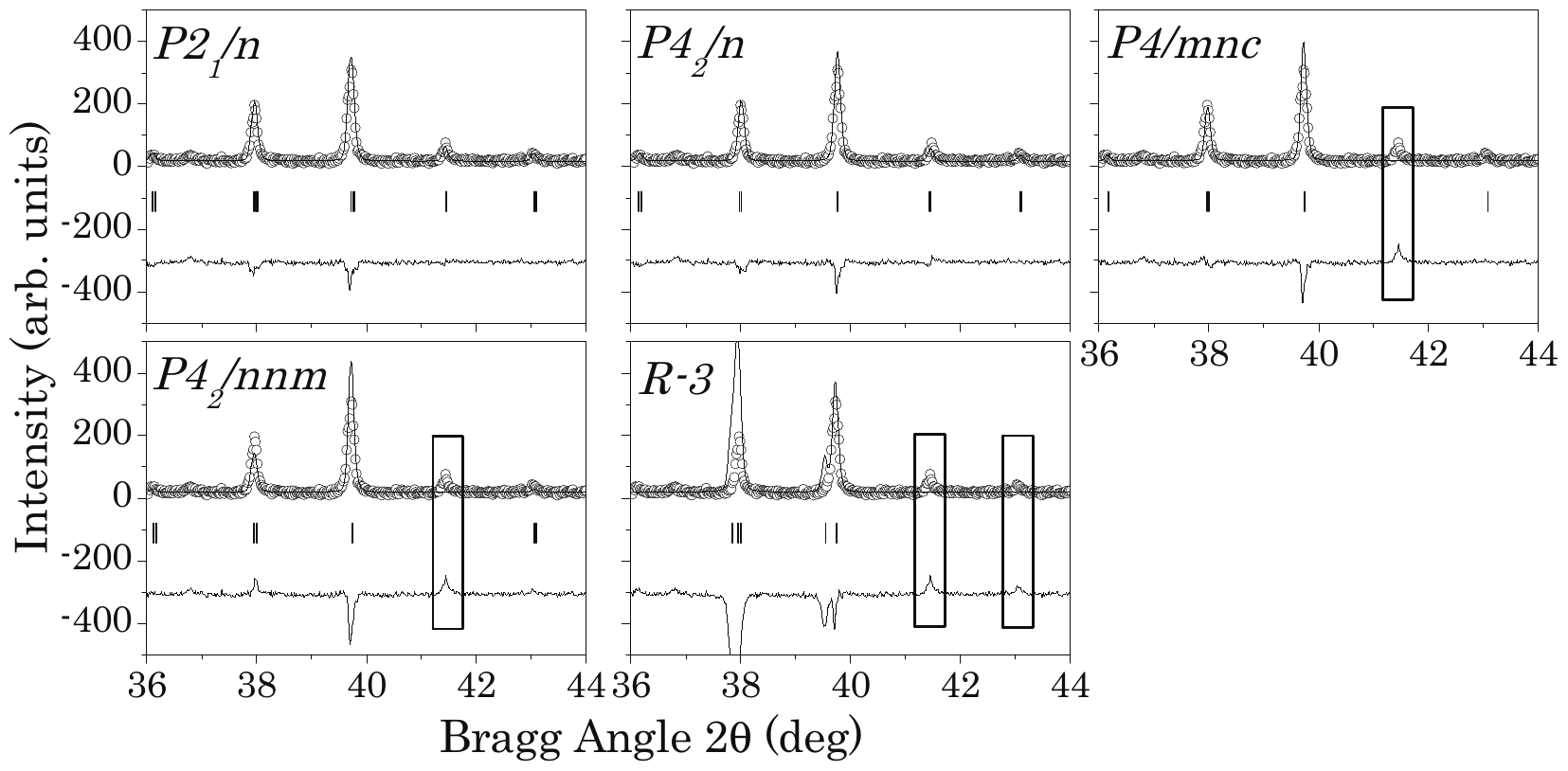

Results of the XRPD data refinements, in the $36-44^{\circ} 2 \theta$ interval, in $\mathrm{SrNdCoRuO}_{6}$, using five different models with $P 2_{1} / n, P 4_{2} / n, P 4 / m n c, P 4_{2} / n n m$ and $R \overline{3}$ space groups. $P 2_{1} / n$ and $P 4_{2} / n$ models are able to take into account all the peaks of the pattern, whereas the other three models are not able (see the boxes).

Results of the XRPD data refinements, in the 36-44^{\circ} 2 \theta interval, in \mathrm{SrNdCoRuO}_{6}, using five different models with P 2_{1} / n, P 4_{2} / n, P 4 / m n c, P 4_{2} / n n m and R \overline{3} space groups. P 2_{1} / n and P 4_{2} / n models are able to take into account all the peaks of the pattern, whereas the other three models are not able (see the boxes).

Document
Thesis 3 · Iturbe 2012
Figure
5.2
Kind
other
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
