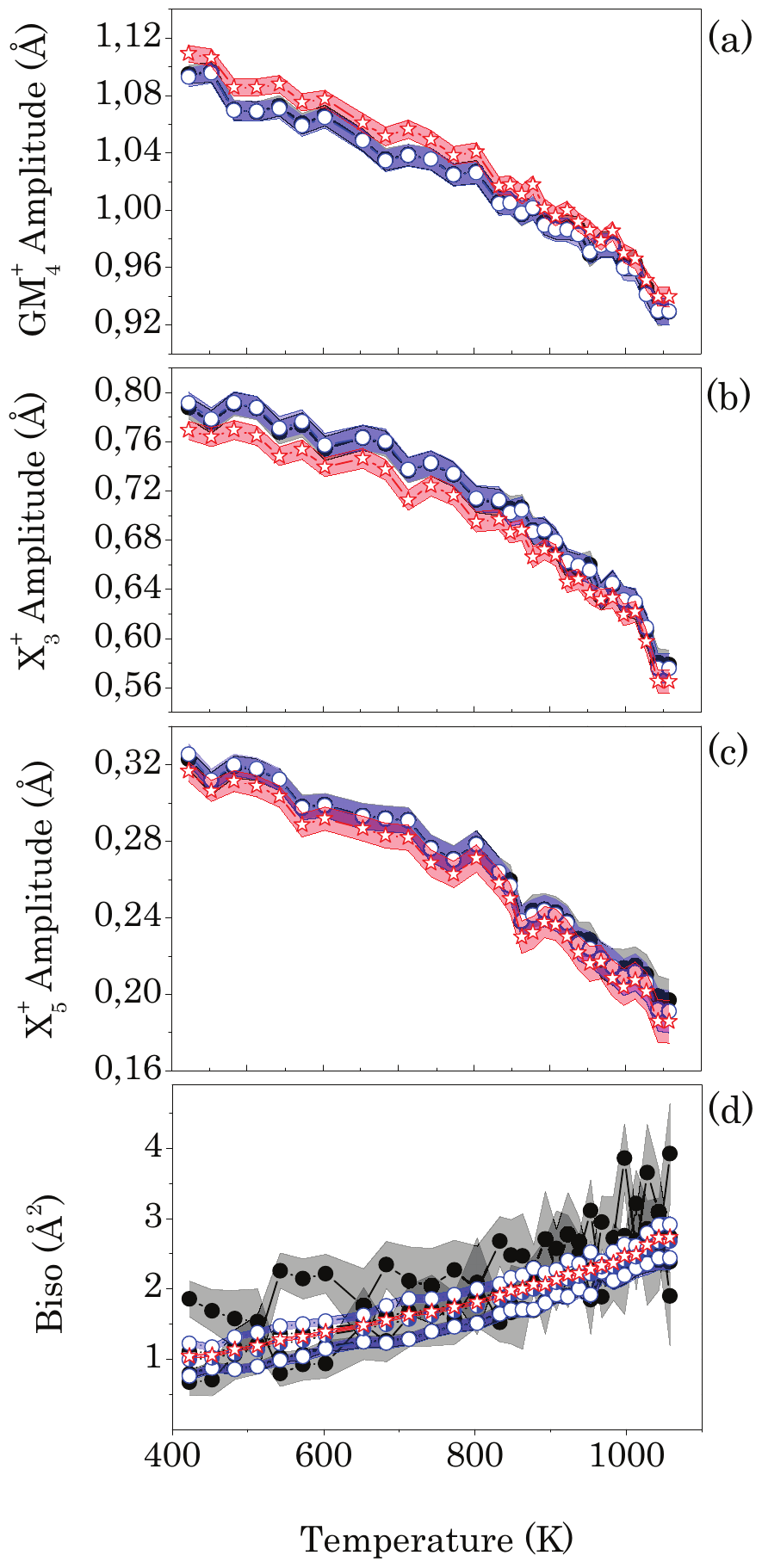

Variation of (a) $\mathrm{GM}_{4}^{+}$distortion irrep amplitude $(\AA)$; (b) $\mathrm{X}_{3}^{+}$distortion irrep amplitude $(\AA)$; (c) $\mathrm{X}_{5}^{+}$distortion irrep amplitude ( $\AA$), and (d) isotropic temperature factors ( $\AA^{2}$) as function of the temperature ( K) for $\mathrm{SrNdCoRuO}_{6}$. Label color and symbol indicate three different refinements: black full circle, isotropic temperature factors for $\mathrm{O} 1, \mathrm{O} 2$ and O 3 independent; blue empty circle, isotropic temperature factors of O1 and O2 refined with the same code and O3 independent; and red star, all isotropic temperature factors refined with the same code. In (d) half-full black and blue symbols, and dotted lines indicate the average value of the isotropic temperature factors for each refinement.

Variation of (a) \mathrm{GM}_{4}^{+}distortion irrep amplitude (\AA); (b) \mathrm{X}_{3}^{+}distortion irrep amplitude (\AA); (c) \mathrm{X}_{5}^{+}distortion irrep amplitude ( \AA), and (d) isotropic temperature factors ( \AA^{2}) as function of the temperature ( K) for \mathrm{SrNdCoRuO}_{6}. Label color and symbol indicate three different refinements: black full circle, isotropic temperature factors for \mathrm{O} 1, \mathrm{O} 2 and O 3 independent; blue empty circle, isotropic temperature factors of O1 and O2 refined with the same code and O3 independent; and red star, all isotropic temperature factors refined with the same code. In (d) half-full black and blue symbols, and dotted lines indicate the average value of the isotropic temperature factors for each refinement.
