perovskite atlas Structures, modes and phase transitions · Josu M. Igartua · UPV/EHU

Figure 5.11 · Thesis 3 · Iturbe 2012

Figure 5.11 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.5.11

Open in its own tab ↗

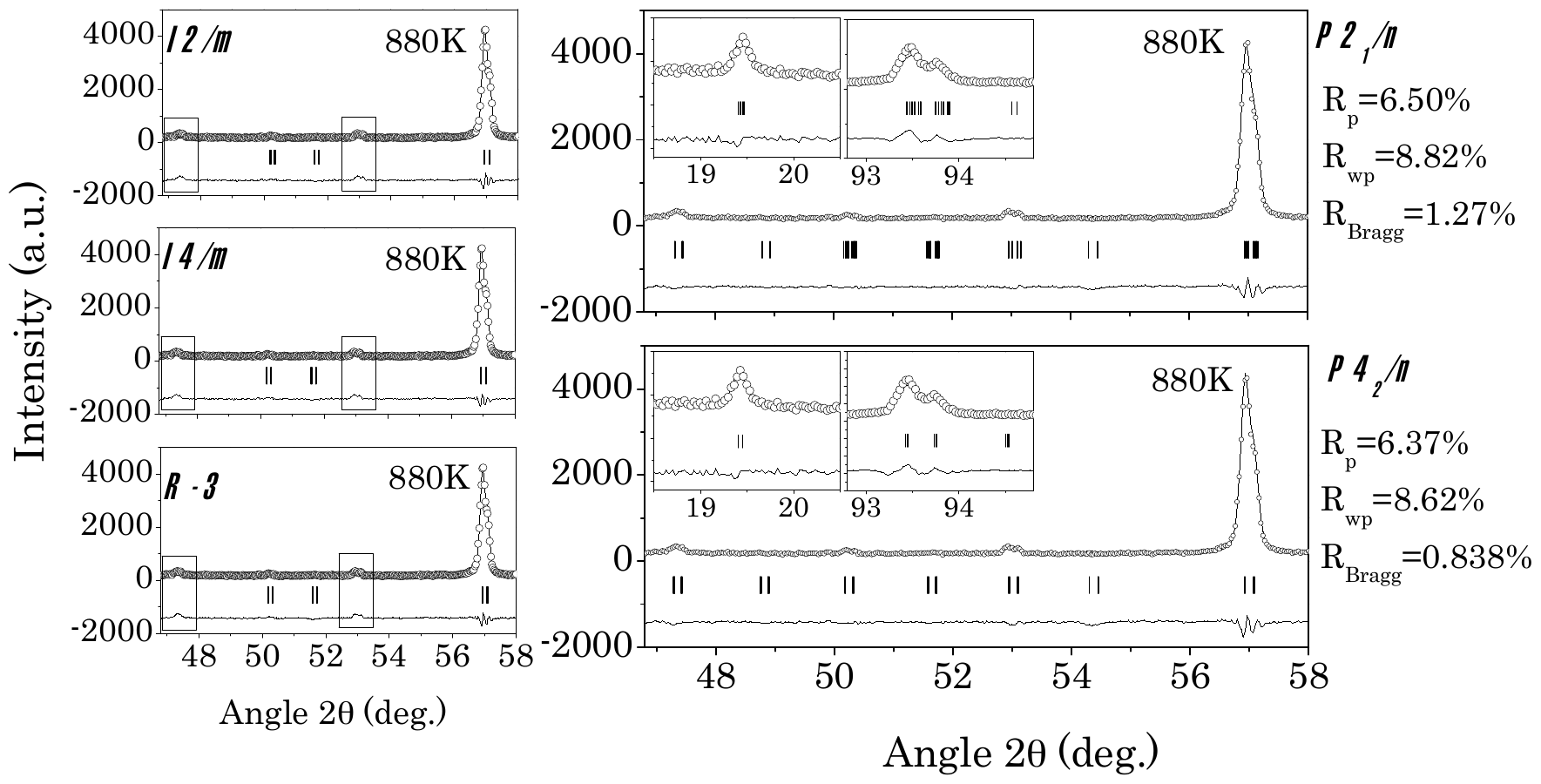

Results of the XRPD data refinements at 880 K in $\mathrm{SrNdZnRuO}_{6}$, using five different models with $P 2_{1} / n, P 4_{2} / n, I 2 / m, I 4 / m$ and $R \overline{3}$ space groups. The failure of $I 2 / m, I 4 / m$ and $R \overline{3}$ symmetries is clear, since small peaks are observed in the pattern which are not indexed by the models. The tetragonal $P 4_{2} / n$ symmetry is suggested for the intermediate phase.

Results of the XRPD data refinements at 880 K in \mathrm{SrNdZnRuO}_{6}, using five different models with P 2_{1} / n, P 4_{2} / n, I 2 / m, I 4 / m and R \overline{3} space groups. The failure of I 2 / m, I 4 / m and R \overline{3} symmetries is clear, since small peaks are observed in the pattern which are not indexed by the models. The tetragonal P 4_{2} / n symmetry is suggested for the intermediate phase.

Document
Thesis 3 · Iturbe 2012
Figure
5.11
Kind
other
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
