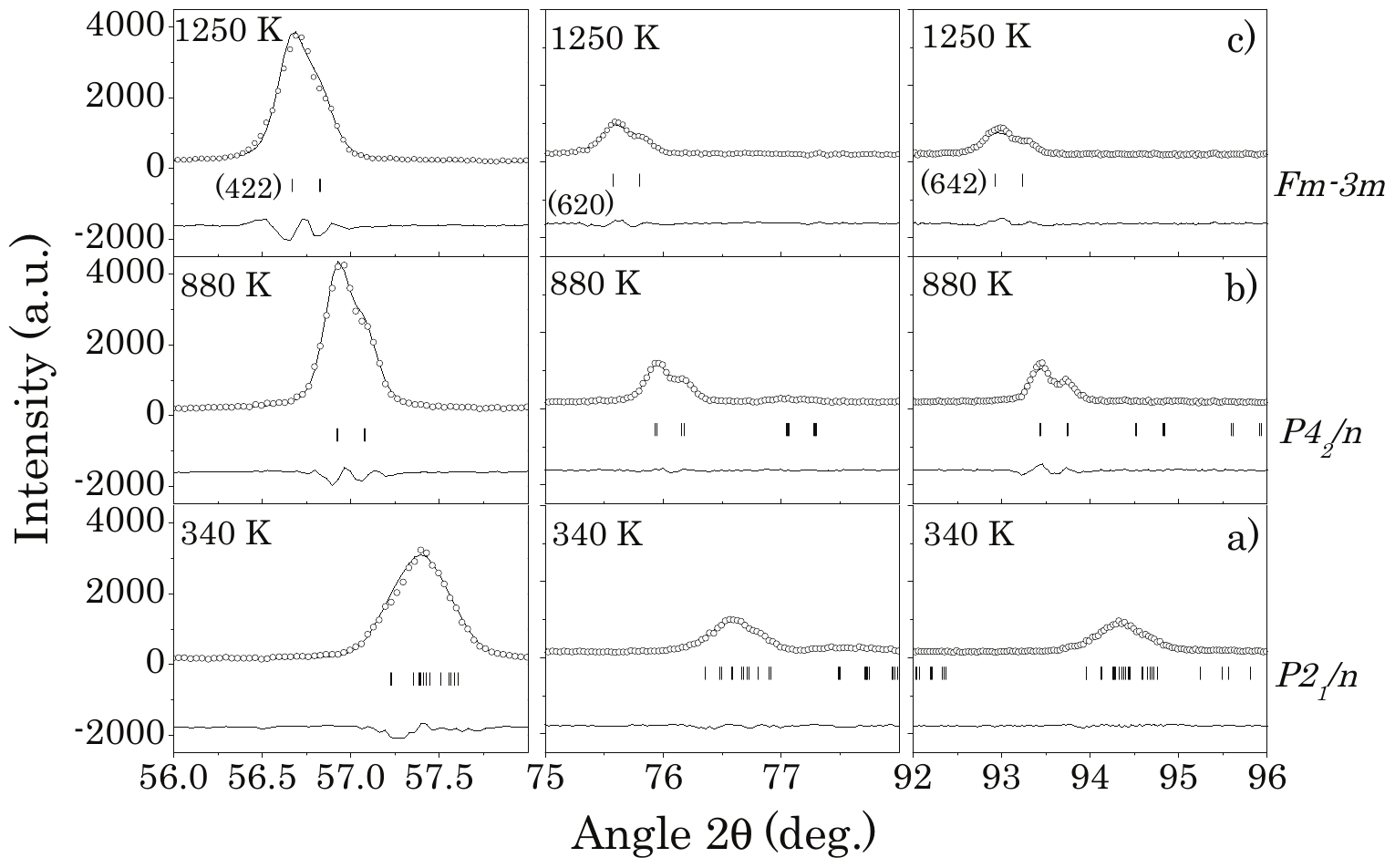

The thermal evolution of the (422), (620) and (642) cubic reflections as determined from XRPD measurements for $\mathrm{SrNdZnRuO}_{6}$ are shown in left, middle and right panels, respectively. Each panel represent a $2 \theta$ section of the whole pattern at a fixed temperature: a) $340 \mathrm{K}, \mathrm{ b}) 880 \mathrm{K}$ and c) 1250 K.

The thermal evolution of the (422), (620) and (642) cubic reflections as determined from XRPD measurements for \mathrm{SrNdZnRuO}_{6} are shown in left, middle and right panels, respectively. Each panel represent a 2 \theta section of the whole pattern at a fixed temperature: a) 340 \mathrm{K}, \mathrm{ b}) 880 \mathrm{K} and c) 1250 K.
