Figure 10.6 · Thesis 3 · Iturbe 2012

Figure 10.6 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.10.6

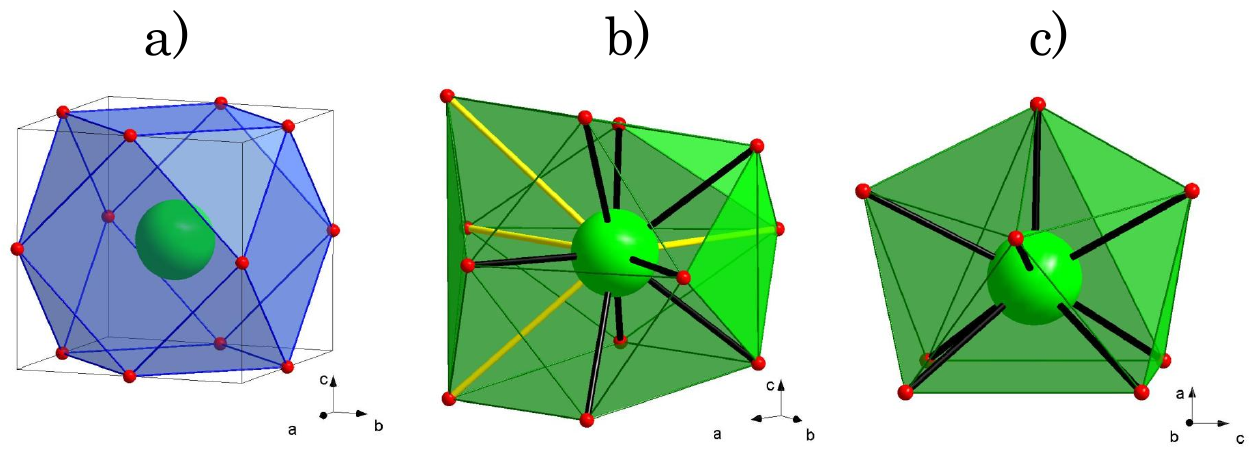

The coordination polyhedron for \mathrm{Ca} / \mathrm{Ln} cations occupying the A-site of the A B \mathrm{O}_{3} perovskite; (a) ideal 12-fold coordination (cubo-octahedron), (b) 12-fold coordination of the orthorhombic perovskite (yellow bond larger than the rest), and (c) 8 -fold coordination of the orthorhombic perovskite (yellow bonds eliminated to identified the four-fold antiprisma). In (b), black \mathrm{Ca} / \mathrm{Ln}-O bonds indicate the first coordination sphere, whereas the yellow bonds the second. (a) and (b) show the same view, the former in cubic basis and the later in orthorhombic basis. Green, blue and red atoms are representative for \mathrm{Ca} / \mathrm{Ln}, \mathrm{Cu} / \mathrm{Ti}, and O atoms, respectively.

The coordination polyhedron for \mathrm{Ca} / \mathrm{Ln} cations occupying the A-site of the A B \mathrm{O}_{3} perovskite; (a) ideal 12-fold coordination (cubo-octahedron), (b) 12-fold coordination of the orthorhombic perovskite (yellow bond larger than the rest), and (c) 8 -fold coordination of the orthorhombic perovskite (yellow bonds eliminated to identified the four-fold antiprisma). In (b), black \mathrm{Ca} / \mathrm{Ln}-O bonds indicate the first coordination sphere, whereas the yellow bonds the second. (a) and (b) show the same view, the former in cubic basis and the later in orthorhombic basis. Green, blue and red atoms are representative for \mathrm{Ca} / \mathrm{Ln}, \mathrm{Cu} / \mathrm{Ti}, and O atoms, respectively.

Document
Thesis 3 · Iturbe 2012
Figure
10.6
Kind
structure-drawing
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1

Evidence
