Figure 10.4 · Thesis 3 · Iturbe 2012

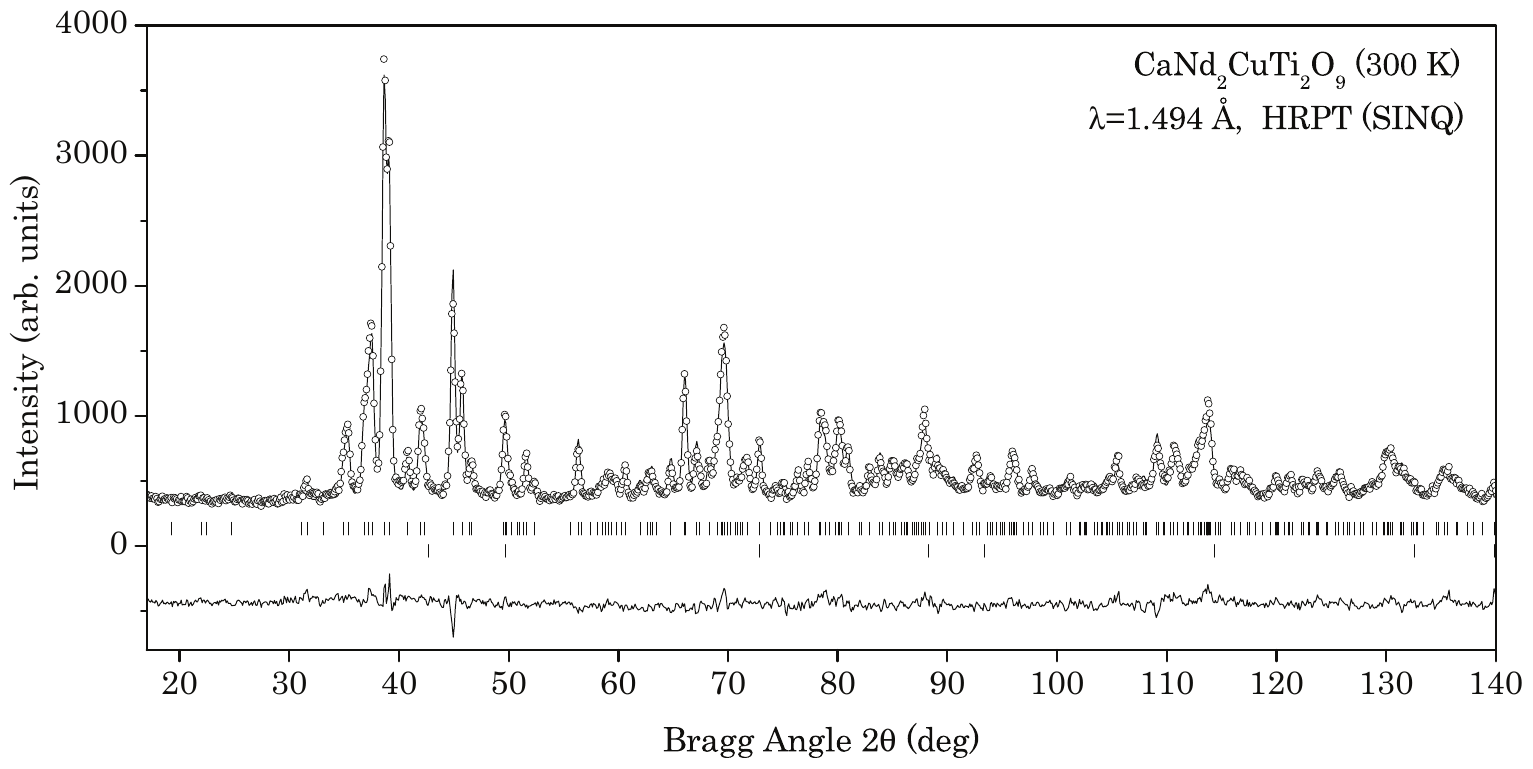

Observed ( \circ), calculated ( -), and difference of neutron powder diffraction ( \lambda=1.494 \AA) Rietveld profiles for \mathrm{CaNd}_{2} \mathrm{CuTi}_{2} \mathrm{O}_{9} at room temperature using structural model with Pbnm space group. In the lower part the Bragg-positions of the phase and steel “impurity” are given.
- Document
- Thesis 3 · Iturbe 2012
- Figure
- 10.4
- Kind
- rietveld-plot
- Rights
- own
- Reproduce
- not-needed
auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1
Evidence
- doc:thesis-03 · figure 10.4 · page 180 · OCR line 2164 · thesis-only · crop box: OCR box scaled to the 300 dpi page and fitted to the ink extent
