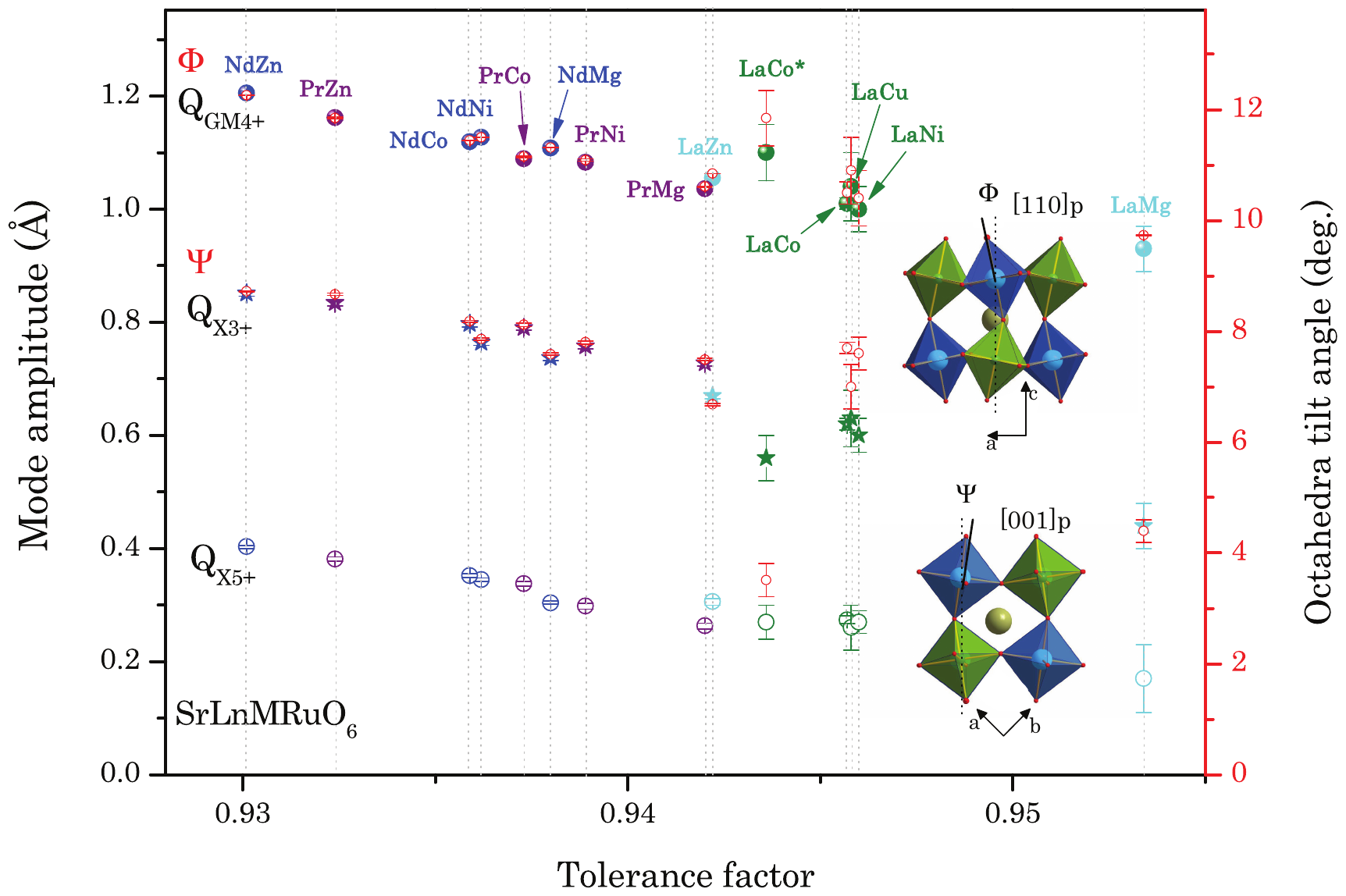

Amplitudes of $\mathrm{GM}_{4}^{+}$(fill circles), $\mathrm{X}_{3}^{+}$(stars) and $\mathrm{X}_{5}^{+}$irreps (empty circles) conforming the RT phase of the $\mathrm{SrLaMRuO}_{6}\left(\mathrm{M}=\mathrm{Zn}^{a}, \mathrm{Mg}^{a}\right)$ (light-blue), $\mathrm{SrLaMRuO}_{6}\left(\mathrm{M}=\mathrm{Cu}^{b}\right.$ [116], $\mathrm{Ni}^{b}$ [116], $\mathrm{Co}^{* c}$ [111], $\mathrm{Co}^{a}$ [115]), $\mathrm{SrNdMRuO}_{6}\left(\mathrm{M}=\mathrm{Zn}^{a}, \mathrm{Co}^{a}, \mathrm{Mg}^{a}, \mathrm{Ni}^{a}\right)$ (dark-blue) and $\mathrm{SrPrMRuO}_{6}\left(\mathrm{M}=\mathrm{Zn}^{a}, \mathrm{Co}^{a}, \mathrm{Mg}^{a}, \mathrm{Ni}^{a}\right)$ (purple) compounds, and $\Psi$ and $\Phi$ tilt angles (red symbols), as obtained from the NPD ${ }^{a}$, synchrotron radiation ${ }^{b}$ or $\mathrm{XRPD}^{c}$ data refinement, in function of calculated tolerance factors. Lines are guide to the eyes.

Amplitudes of \mathrm{GM}_{4}^{+}(fill circles), \mathrm{X}_{3}^{+}(stars) and \mathrm{X}_{5}^{+}irreps (empty circles) conforming the RT phase of the \mathrm{SrLaMRuO}_{6}\left(\mathrm{M}=\mathrm{Zn}^{a}, \mathrm{Mg}^{a}\right) (light-blue), \mathrm{SrLaMRuO}_{6}\left(\mathrm{M}=\mathrm{Cu}^{b}\right. [116], \mathrm{Ni}^{b} [116], \mathrm{Co}^{* c} [111], \mathrm{Co}^{a} [115]), \mathrm{SrNdMRuO}_{6}\left(\mathrm{M}=\mathrm{Zn}^{a}, \mathrm{Co}^{a}, \mathrm{Mg}^{a}, \mathrm{Ni}^{a}\right) (dark-blue) and \mathrm{SrPrMRuO}_{6}\left(\mathrm{M}=\mathrm{Zn}^{a}, \mathrm{Co}^{a}, \mathrm{Mg}^{a}, \mathrm{Ni}^{a}\right) (purple) compounds, and \Psi and \Phi tilt angles (red symbols), as obtained from the NPD { }^{a}, synchrotron radiation { }^{b} or \mathrm{XRPD}^{c} data refinement, in function of calculated tolerance factors. Lines are guide to the eyes.
