Figure 1.5 · Thesis 3 · Iturbe 2012

Figure 1.5 · Thesis 3 · Iturbe 2012

status thesis-only · visibility public · id plt:thesis-03.1.5

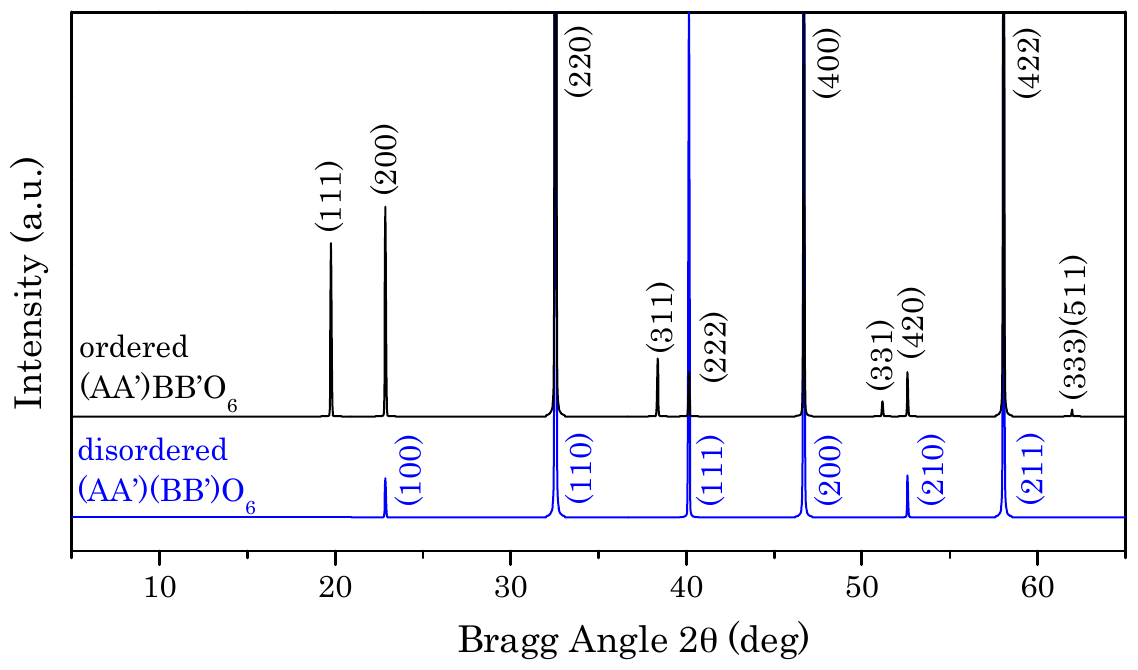

Simulated X -ray diffraction patterns for ordered \left(A A^{\prime}\right) B B^{\prime} \mathrm{O}_{6} cubic structure (space group F m \overline{3} m)(black) and disordered \left(A A^{\prime}\right)\left(B B^{\prime}\right) \mathrm{O}_{6} cubic structure (space group P m \overline{3} m)(blue). (Simulation characteristics: \lambda=1.5406 \AA a_{\mathrm{p}}=3.8873 \AA, 2 a_{\mathrm{p}}.)

Simulated X -ray diffraction patterns for ordered \left(A A^{\prime}\right) B B^{\prime} \mathrm{O}_{6} cubic structure (space group F m \overline{3} m)(black) and disordered \left(A A^{\prime}\right)\left(B B^{\prime}\right) \mathrm{O}_{6} cubic structure (space group P m \overline{3} m)(blue). (Simulation characteristics: \lambda=1.5406 \AA a_{\mathrm{p}}=3.8873 \AA, 2 a_{\mathrm{p}}.)

Document
Thesis 3 · Iturbe 2012
Figure
1.5
Kind
structure-drawing
Rights
own
Reproduce
not-needed

auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1
