Figure 9.6-2 · Thesis 2 · Faik 2009

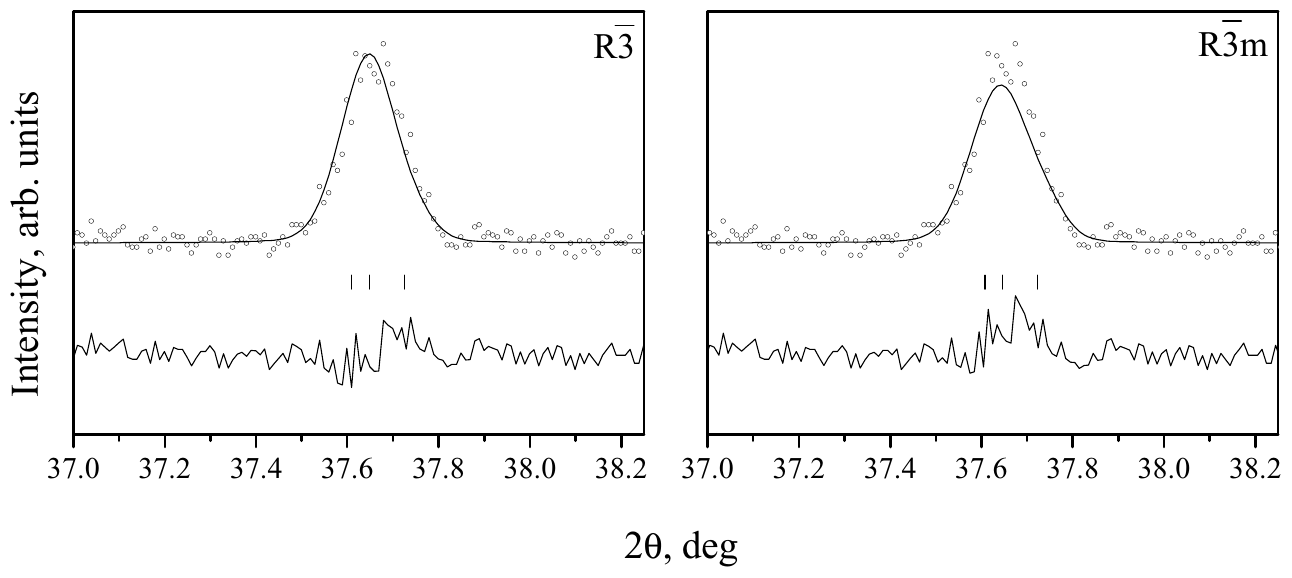

Rietveld refinement of \mathrm{Sr}_{2} \mathrm{CoSbO}_{6}, at room temperature, using the R \overline{3} and R \overline{3} m space groups. Experimental (symbols) and calculated (line) and difference powder diffraction profiles. The bars represent the Bragg peak positions. The structural model in R \overline{3} fits better the intensity of the peak.
- Document
- Thesis 2 · Faik 2009
- Figure
- 9.6-2
- Kind
- rietveld-plot
- Rights
- own
- Reproduce
- not-needed
auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1
Evidence
- doc:thesis-02 · figure 9.6 · page 122 · OCR line 1309 · thesis-only · crop box: OCR box scaled to the 300 dpi page and fitted to the ink extent
