Figure 14.7 · Thesis 2 · Faik 2009

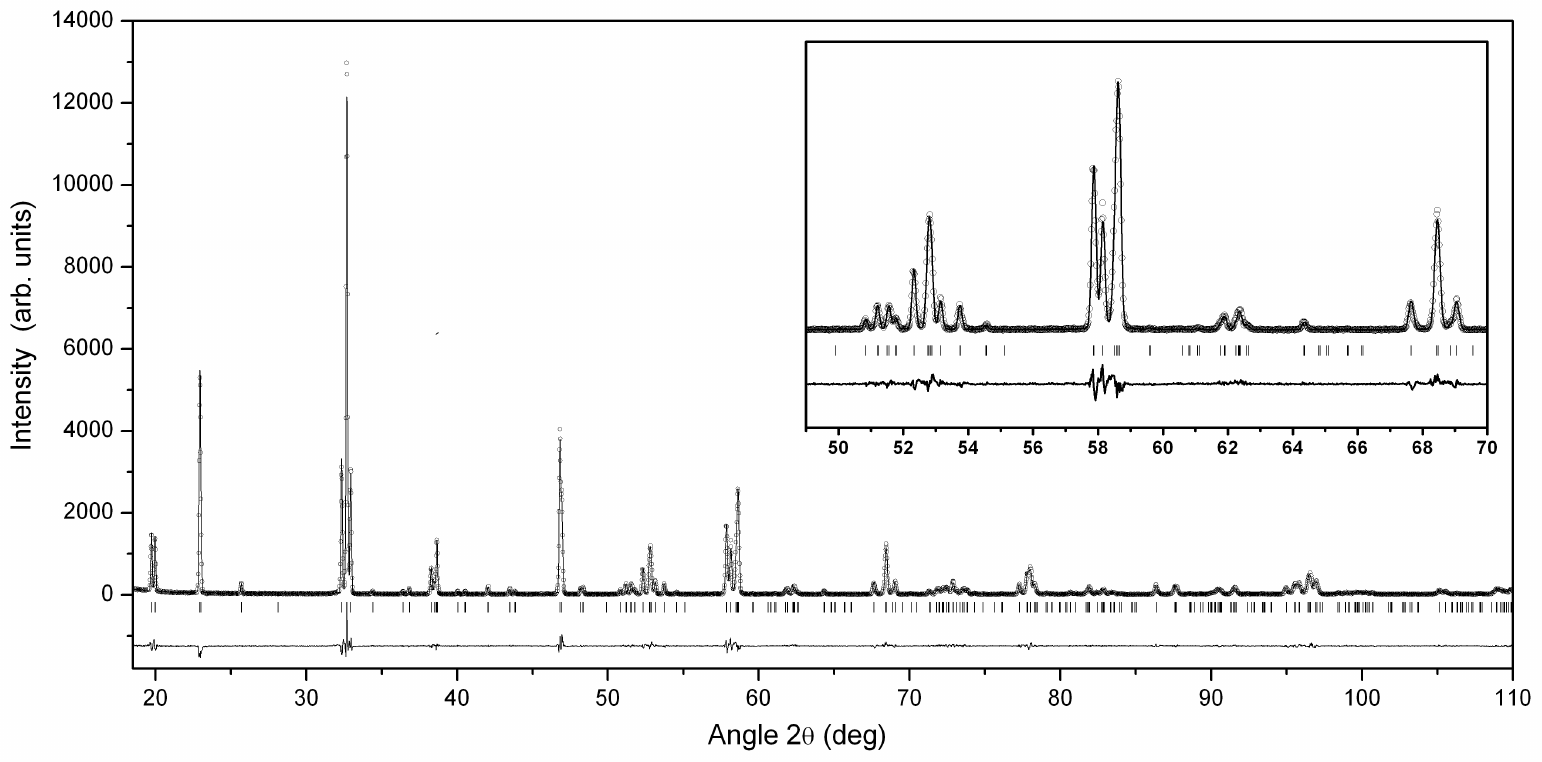

Observed X-ray patterns (symbols), calculated (line) and difference profiles for the Rietveld refinement of \mathrm{Ca}_{2} \mathrm{FeSbO}_{6} at room temperature using a structural model with P 2_{1} / n space group.
- Document
- Thesis 2 · Faik 2009
- Figure
- 14.7
- Kind
- rietveld-plot
- Rights
- own
- Reproduce
- not-needed
auto-cropped from the OCR Markdown crop box (stage B); materials and kind to be reviewed in Phase 1
Evidence
- doc:thesis-02 · figure 14.7 · page 197 · OCR line 2172 · thesis-only · crop box: OCR box scaled to the 300 dpi page and fitted to the ink extent
